Steel Bar Grating Tolerance

ANSI/NAAMM (MBG531) and YB/T4001.1-2019 are the most widely used steel grating production standards. The following are the production tolerances of steel gratings.

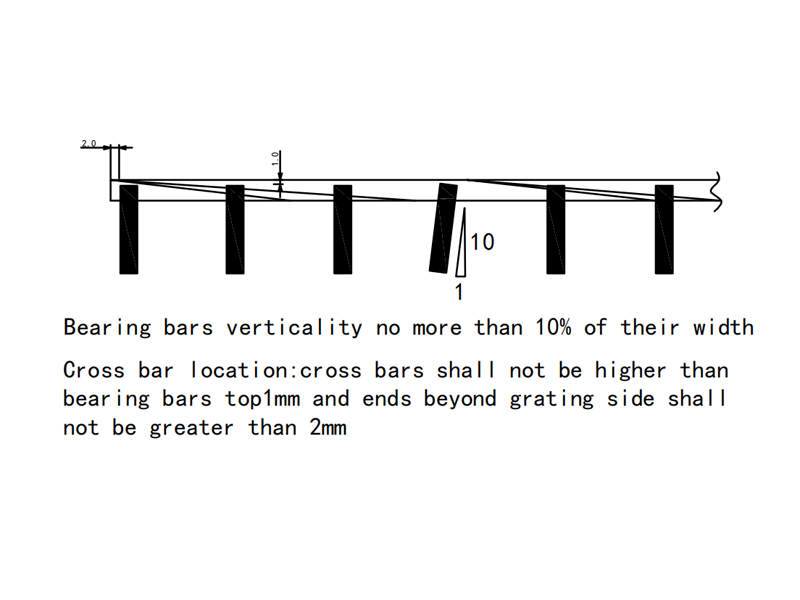

Bearing bars verticality tolerance

No more than 10% of grating panel width.


Bearing bars verticality tolerance

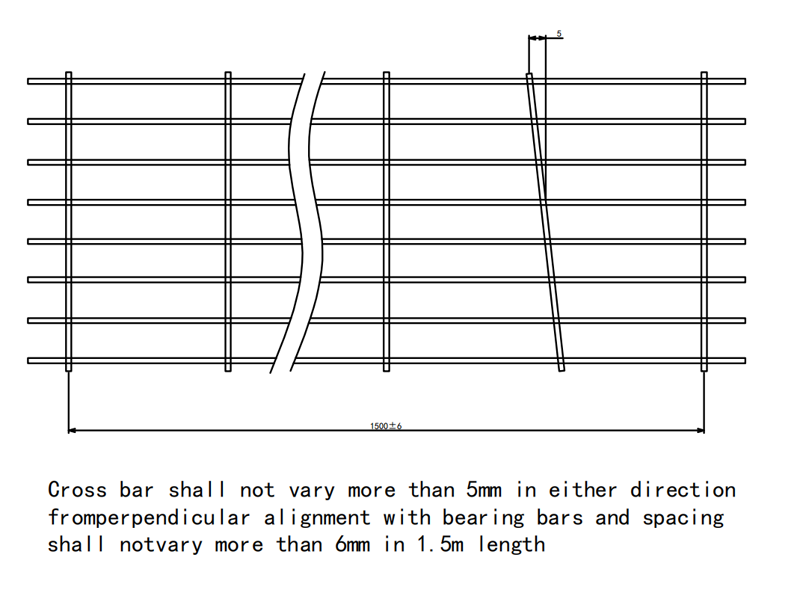

Cross bar perpendicular alignment tolerance

Cross bar shall not vary more than 5mm in either direction from perpendicular alignment with bearing bars and spacing shall not vary more than 6mm in 1.5m length.

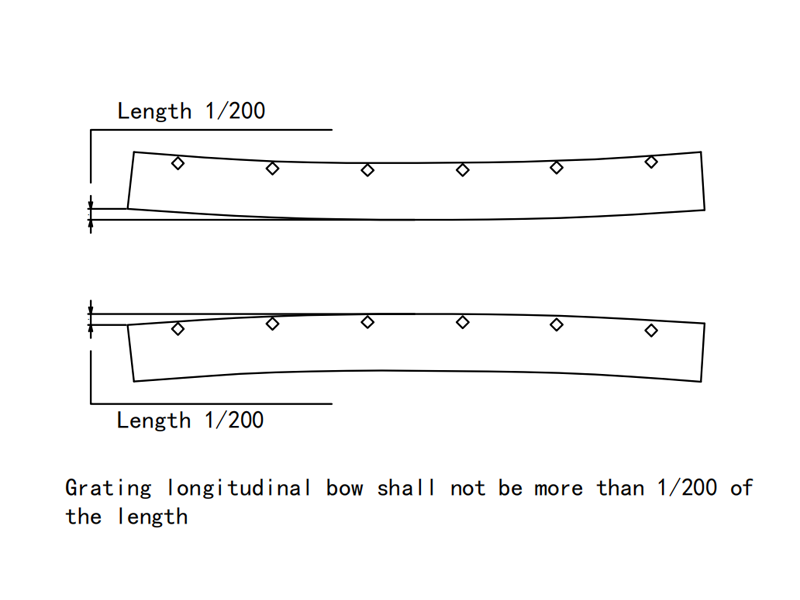

Grating longitudinal bow tolerance

Grating longitudinal bow shall not be more than 1/200 of the length


Grating longitudinal bow tolerance

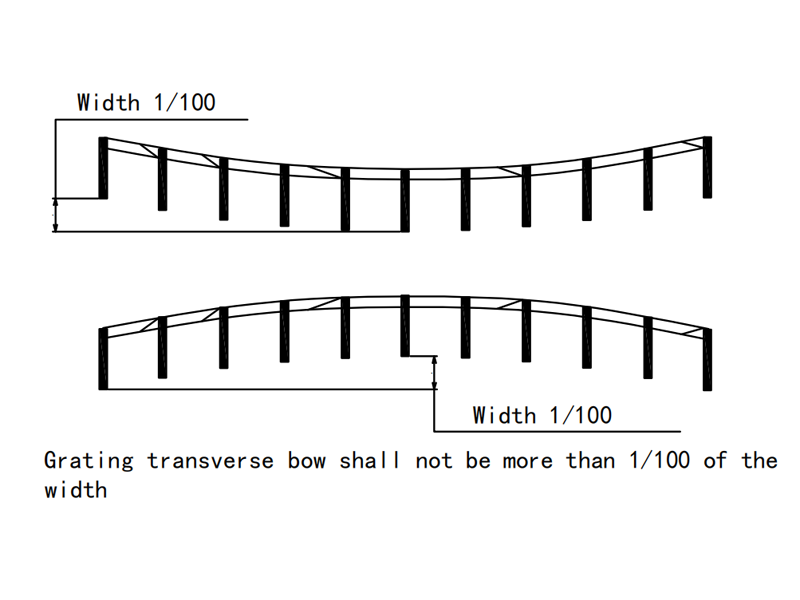

Grating transverse bow tolerance

Grating transverse bow shall not be more than 1/100 of the width


Grating transverse bow tolerance

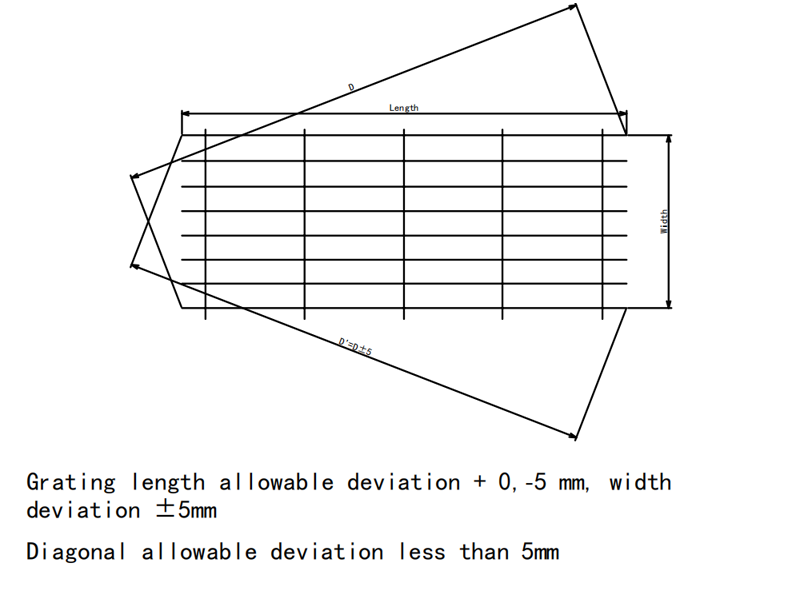

Grating length, width and diagonal allowable deviation and tolerance

Grating length allowable deviation +0, -5 mm, width deviation ±5mm, Diagonal allowable deviation less than 5mm.


Grating length, width and diagonal allowable deviation and tolerance
