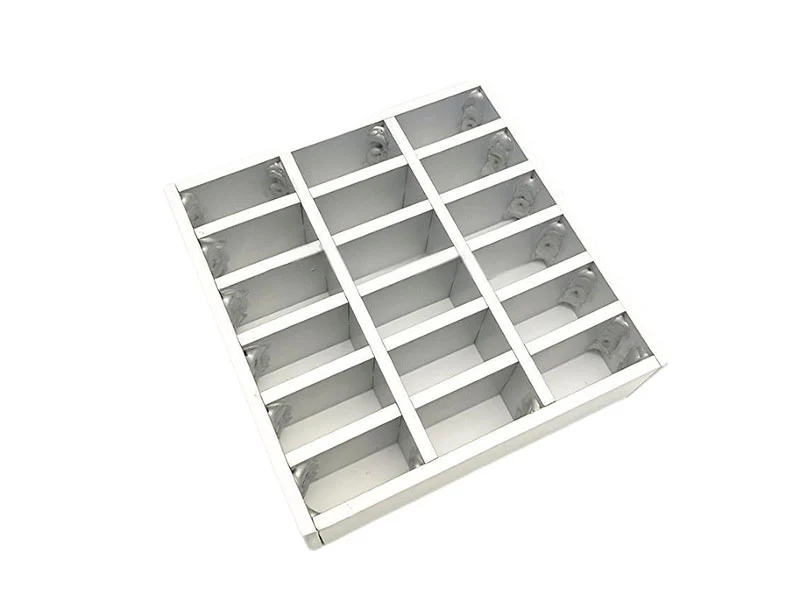

Aluminum Grating

Aluminum grating is formed by extruding and locking standard aluminum bars and aluminum rods through equipment. It has the characteristics of no deformation or discoloration under normal use conditions, strong weather resistance and corrosion resistance, good heat dissipation performance, maintenance-free and long service life.


As an alternative to steel grating, aluminum grating is made of aluminum alloy 6063, and the main alloying elements are magnesium and silicon. Due to the elemental characteristics and structural characteristics of aluminum grating, it not only has the corresponding load-bearing capacity of steel grating, but also has many properties that steel grating does not have. For example, good corrosion resistance, electroplating properties, light weight and beautiful appearance, etc. Aluminum grating products have a high degree of standardization, strict and precise dimensional control, and convenient and quick construction. Compared with traditional construction techniques, the use of aluminum grating can greatly reduce on-site construction work time, and the construction quality and project aesthetics are greatly improved.



aluminum-grating-details

Classification of Aluminum Grating

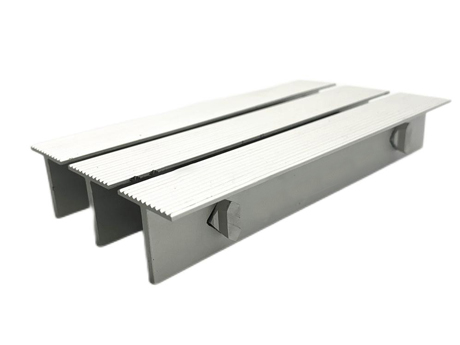

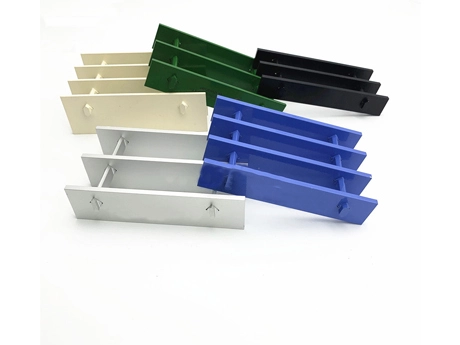

Rectangular Swaged Aluminum Grating

Standard aluminum grating is the most commonly used model among aluminum grating products. It is made of flat aluminum and square aluminum through extrusion process at a certain spacing. It has the characteristics of no welding points, firm connection, light weight, high strength, low energy consumption and corrosion resistance.


According to different anti-slip requirements, it can be divided into plain surface aluminum grating and serrated aluminum grating.

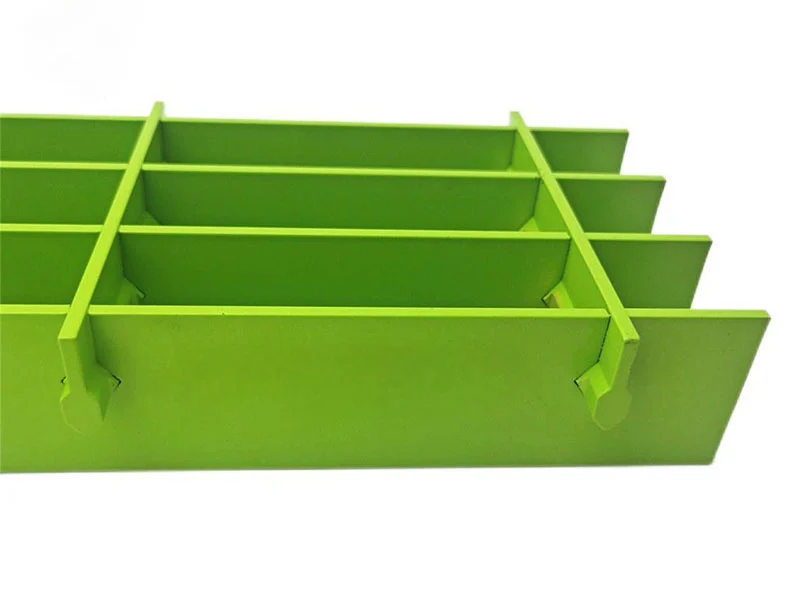

Plain Surface Rectangular Swaged Aluminum Grating
Plain Surface Rectangular Swaged Aluminum Grating

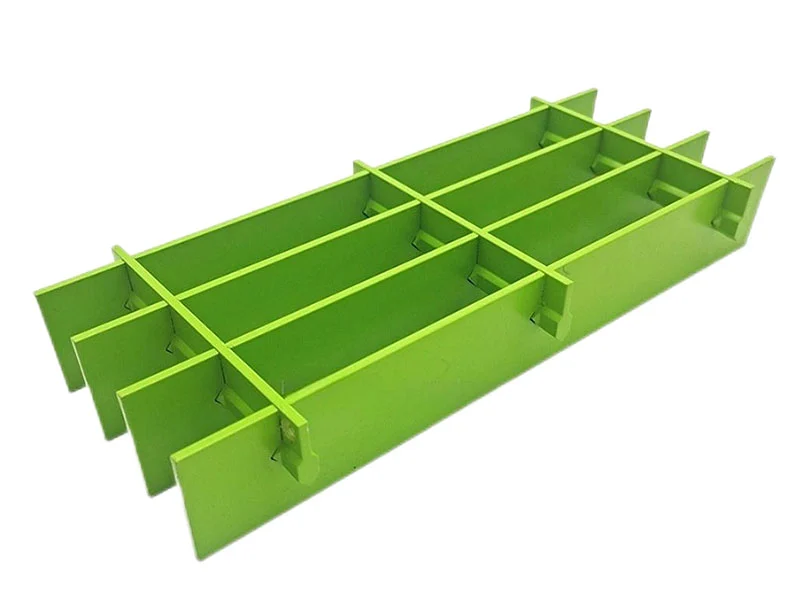

Serrated Surface Rectangular Swaged Aluminum Grating
Serrated Surface Rectangular Swaged Aluminum Grating

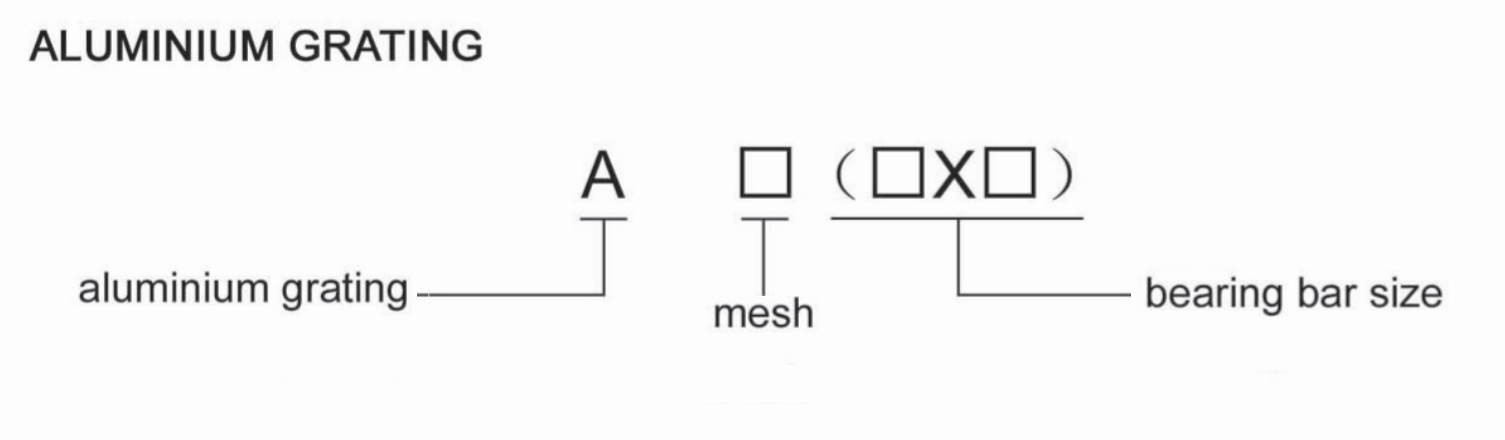

Aluminum Grating Naming

Aluminum Grating Naming

Surface Treatment

  • Mill Finish

  • Anodizing

  • Powder Coating


Scope of application

  • Outdoor conditions for fences, guardrails

  • Exterior wall decoration

  • Urban drainage system covers

  • Pavements

  • Platforms


Rectangular Swaged Aluminum Grating Loads and Deflections Table

TypeLoading Bar Spacing
(mm)
Cross Bar Spacing
(mm)
Mass
kg/m2
Max Span at 4kpa deflection 5mm(mm)Bearing Bar Size(mm)
SPAN
200
SPAN
350
SPAN
500
SPAN
650










AE(20x5)601007.10277620x5U93.7730.6115.008.88SPAN
800









AEF(20x5)60508.652D0.511.563.205.42








AC(20x5)401009.25485720x5U143.4146.8222.9413.578.93








ACF(20x5)405010.804D0.521.593.265.538.43








AC(25x3)401007.37189325x3U134.4543.9021.2112.728.40








ACF(25x3)40508.921D0.421.282.614.426.71








AE(25x5)601008.44791625x5U146.5147.8423.4413.879.15








AEF(25x5)60509.997D0.411.252.564.336.58








AB(20x5)3010011.40692020x5U187.5461.2330.0517.7811.73SPAN
950








ABF(20x5)305012.956D0.511.563.195.418.22







AB(25x3)301008.98595825x3U175.8257.4128.1316.6410.987.79







ABF(25x3)305010.535D0.411.252.564.336.589.31







AC(25x5)4010011.137101225x5U224.0871.9335.8521.2114.009.93







ACF(25x5)405012.687D0.421.282.614.416.709.49







AC(32x3)401008.953107332x3U220.2871.9335.2420.8513.769.76







ACF(32x3)405010.502D0.321.002.043.455.237.4







AB(25x5)3010013.827108625x5U293.0395.6846.8827.7418.3112.98SPAN
1100







ABF(25x5)305015.377D0.411.252.564.336.579.3






AE(32x5)6010010.330110132x5U240.0578.3838.4022.7215.0010.637.93






AEF(32x5)605011.88D0.320.982.003.385.137.259.76






AB(32x3)3010011.019115232x3U288.0694.0646.0927.2718.0012.769.52






ABF(32x3)305012.568D0.320.982.003.385.137.259.75






AC(32x5)4010013.773121632x5U367.14119.8858.7434.7522.9416.2712.13SPAN
1250






ACF(32x5)405015.323D0.321.002.033.445.237.399.94





AE(40x5)6010012.482130040x5U375.08122.4760.0135.5123.4416.6212.399.60





AEF(40x5)605014.032D0.250.781.602.704.105.797.7810.08





AB(32x5)3010017.216130432x5U480.11156.7776.8145.4530.0021.2715.8712.29





ABF(32x5)305018.766D0.320.982.003.385.137.259.7412.62





AB(40x3)3010013.343136040x3U450.10146.9772.0142.6128.1319.9414.8711.52SPAN
1400





ABF(40x3)305014.892D0.250.781.602.704.105.797.7810.07




AE(45x5)6010013.827141945x5U474.72155.0175.9544.9429.6721.0415.6912.159.68




AEF(45x5)605015.377D0.230.691.422.403.645.146.918.9511.25




AC(40x5)4010016.786143540x5U573.66187.3191.7854.3135.3925.4218.9614.6811.70




ACF(40x5)405018.336D0.260.801.632.754.185.907.9310.2712.91




AE(50x5)6010015.172153550x5U586.07191.3793.7755.4836.6225.9719.3715.0011.96




AEF(50x5)605016.722D0.200.621.282.163.284.636.218.0410.11




AB(40x5)305021.090153840x5U750.17244.95120.0271.0246.8833.2424.7919.2015.30SPAN
1550




ABF(40x5)3010022.640D0.250.781.602.704.105.797.7810.0612.66



AC(45x5)4010018.669156645x5U726.04237.07116.1668.7345.3732.1724.0018.5814.8112.08



ACF(45x5)405020.219D0.230.711.452.453.715.247.049.1111.4614.09



AB(50x3)3010016.248160550x3U703.29229.64112.5266.5843.9531.1723.2418.0014.3511.70



ABF(50x3)305017.798D0.200.621.282.163.274.626.218.0410.1012.42



AB(45x5)3010023.511167745x5U949.44310.02151.9189.8859.3442.0831.3824.3019.3715.80



ABF(45x5)305025.061D0.230.691.422.403.645.146.908.9411.2313.81



AC(50x5)4010020.552169250x5U896.35292.68143.4184.8656.0239.7229.6322.9418.2914.92SPAN
1700



ACF(50x5)405022.102D0.210.641.302.203.344.716.338.1910.3012.66


AB(50x5)3010025.932181350x5U1172.15382.74187.54110.9773.2551.9538.7430.0023.9219.5116.22SPAN
1850


ABF(50x5)305027.482D0.200.621.282.163.274.626.218.0310.1012.4114.97

AE(65x5)6010019.207186465x5U990.46323.41158.4793.7761.9043.8932.7425.3520.2116.4913.711.57SPAN
2000

AEF(65x5)605020.757D0.160.480.981.662.523.554.776.177.759.5211.4813.63
AC(65x5)4010026.201205465x5U1514.83494.63242.37143.4194.6767.1350.0738.7730.9125.2220.9617.7015.14SPAN
2150
ACF(65x5)405027.751D0.160.491.001.692.573.624.866.297.909.7011.7013.8816.27
AB(65x5)3010033.195219865x5U1980.93646.83316.94187.54123.8087.7965.4850.7140.4232.9827.4123.1519.8017.14
ABF(65x5)305034.745D0.160.480.981.662.523.554.776.177.759.5211.4713.6115.9518.48

When the deflection is less than 5mm, walking is most comfortable

U= Uniformly Distributed Load in Kilopascals(Kpa or KN/m²)

D=Maximum deflection in millimeters(mm)

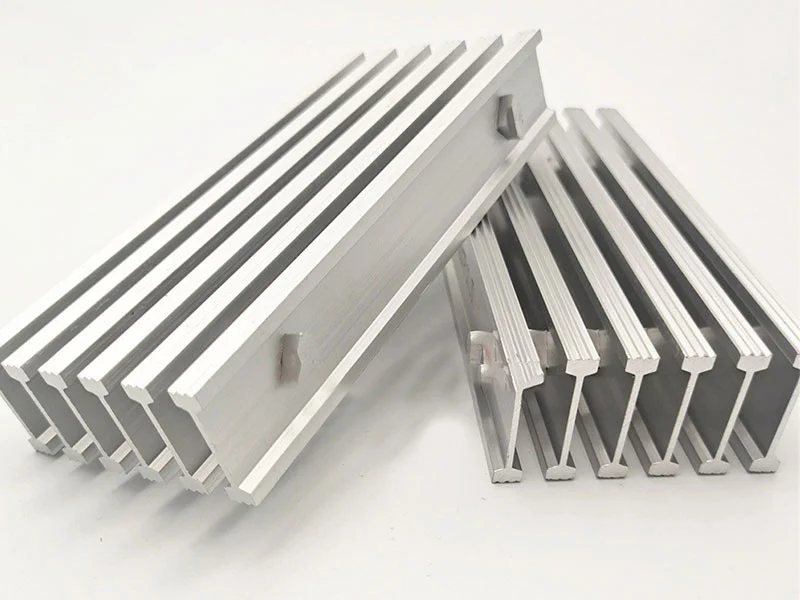

I Bar Swaged Aluminum Grating

As the name implies, the cross-section of the I bar aluminum grating is in the shape of an "I" shape, and the upper and lower surfaces are treated with wire teeth, which enhances the product's own anti-slip performance. At the same time, it has the same load-bearing capacity as the standard aluminum grating, but the material is lighter and more cost-effective. In addition, the 11.1mm ultra-small pitch can provide special protection for wheelchairs and high heels, and is mainly used in garden landscapes, trails, public facilities and other fields.


Surface Treatment

  • Mill Finish

  • Anodizing

  • Powder Coating


Advantages of I bar aluminum grating

  • Lighter profile, more economical

  • Higher density and contact area, suitable for wheelchairs and high heels

  • Better anti-slip performance


I Bar Swaged Aluminum Grating Loads and Deflections Table

TypeLoading Bar Spacing
(mm)
Mass
kg/m²
Max Span at 4kpa deflection 5mm(mm)Bearing Bar Size(mm)
Span
600
Span
750
Span
900
Span
1050
Span
1200
Span
1350
Span
1500
Span
1650
Span
1800
Span
1950
Span
2100
Span
2400
AB25x6I30.009.721120.0025x6U30.2524.1720.1517.2815.13






D2.924.576.578.9611.70






AB32x6I30.0011.421320.0032x6U47.2537.7731.5026.9923.6021.01





D2.333.655.257.169.3511.86





AB40x6I30.0013.181495.0040x6U68.0354.4445.3338.8734.0330.2527.19




D1.953.054.395.697.799.8812.19




AB45x6I30.0014.941670.0045x6U92.5974.0761.7052.9046.2941.1837.0633.6530.88


D1.672.613.765.136.688.4510.4612.6515.06


AB50x6I30.0016.751855.0050x6U120.9496.7680.6369.1360.4653.7748.4044.0040.3137.19

D1.472.293.304.475.847.419.1411.0713.1515.44

AB55x6I30.0018.312030.0055x6U153.07122.47102.0787.4776.5668.0361.2355.6851.0347.1143.75
D1.292.032.923.985.206.578.129.8311.7113.7415.95
AB65x6I30.0020.262210.0065x6U188.97151.20126.01108.0194.5183.9775.6068.7063.0058.1754.0047.26
D1.171.832.643.584.675.927.318.8410.5412.3714.3518.72

U= Uniformly Distributed Load in Kilopascals(Kpa or KN/m²)

D=Maximum deflection in millimeters(mm)

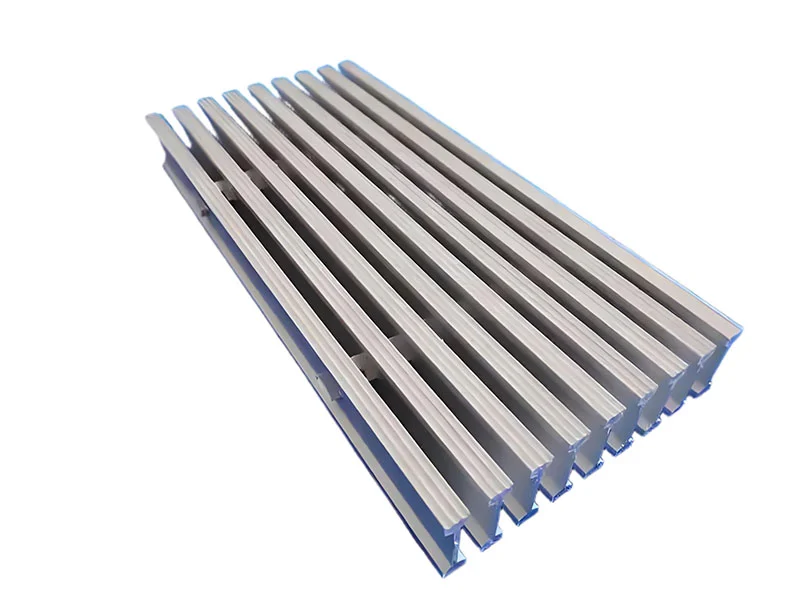

I Bar Swaged Aluminum Grating
I Bar Swaged Aluminum Grating
I Bar Swaged Aluminum Grating
I Bar Swaged Aluminum Grating

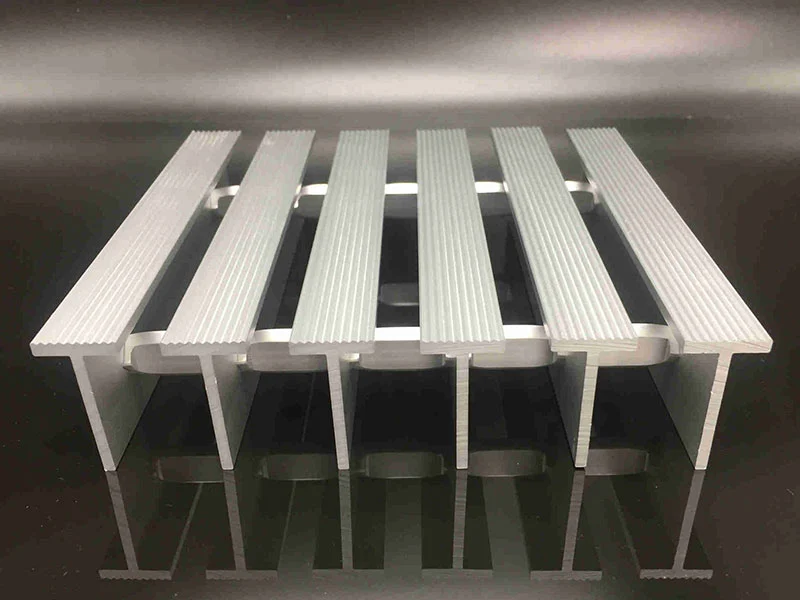

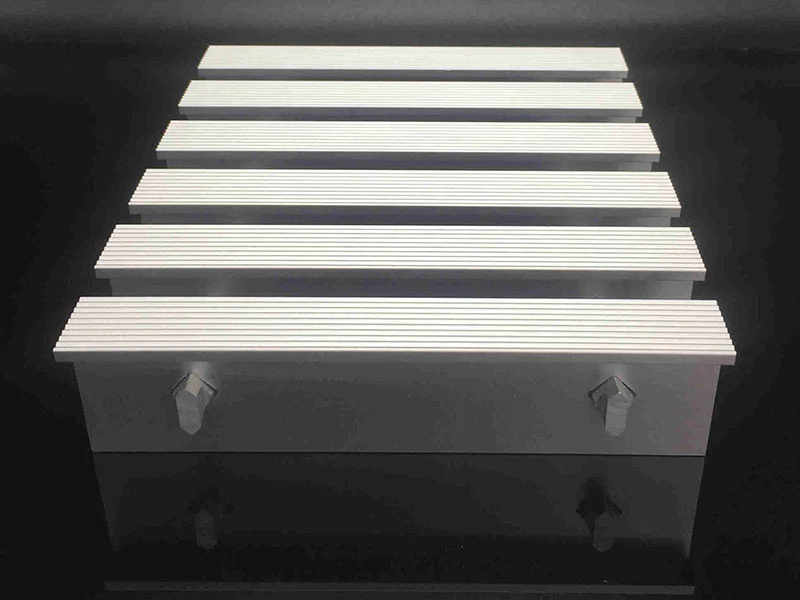

T Bar Swaged Aluminum Grating

T bar aluminum grating has a larger support area. This design increases the contact surface of the product surface, greatly improving the comfort of stepping. The surface line tooth treatment also makes the anti-slip more significant. The minimum surface gap can reach 2mm. We provide various spacings, including spacings that comply with the Americans with Disabilities Act.


Surface Treatment

  • Mill Finish

  • Anodizing

  • Powder Coating


Surface Shape

  • Knurled Finish

Knurled Finish

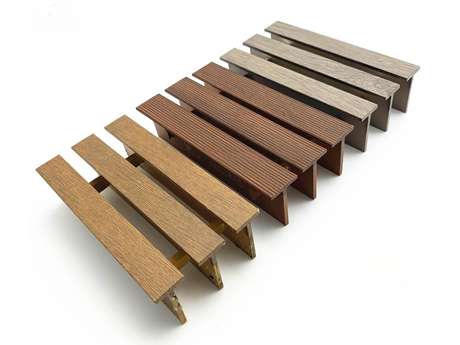

  • Imitation of Wood Grain Finish

Imitation of Wood Grain Finish


Scope of application

  • Drain Cover

  • Platform

  • Walkway


T Bar Swaged Aluminum Grating Loads and Deflections Table

TypeLoading Bar Spacing
(mm)
Mass
kg/m²
Max Span at 4kpa deflection 5mm(mm)Bearing Bar Size(mm)
Span
600
Span
750
Span
900
Span
1050
Span
1200
Span
1350
Span
1500
Span
1650
Span
1800
Span
1950
Span
2100
Span
2400
AB25x6T30.009.721120.0025x6U30.2524.1720.1517.2815.13






D2.924.576.578.9611.70






AB32x6T30.0011.421320.0032x6U47.2537.7731.5026.9923.6021.01





D2.333.655.257.169.3511.86





AB40x6T30.0013.181495.0040x6U68.0354.4445.3338.8734.0330.2527.19




D1.953.054.395.697.799.8812.19




AB45x6T30.0014.941670.0045x6U92.5974.0761.7052.9046.2941.1837.0633.6530.88


D1.672.613.765.136.688.4510.4612.6515.06


AB50x6T30.0016.751855.0050x6U120.9496.7680.6369.1360.4653.7748.4044.0040.3137.19

D1.472.293.304.475.847.419.1411.0713.1515.44

AB55x6T30.0018.312030.0055x6U153.07122.47102.0787.4776.5668.0361.2355.6851.0347.1143.75
D1.292.032.923.985.206.578.129.8311.7113.7415.95
AB65x6T30.0020.262210.0065x6U188.97151.20126.01108.0194.5183.9775.6068.7063.0058.1754.0047.26
D1.171.832.643.584.675.927.318.8410.5412.3714.3518.72

U= Uniformly Distributed Load in Kilopascals(Kpa or KN/m²)

D=Maximum deflection in millimeters(mm)

T Bar Swaged Aluminum Grating
T Bar Swaged Aluminum Grating
T Bar Swaged Aluminum Grating
T Bar Swaged Aluminum Grating

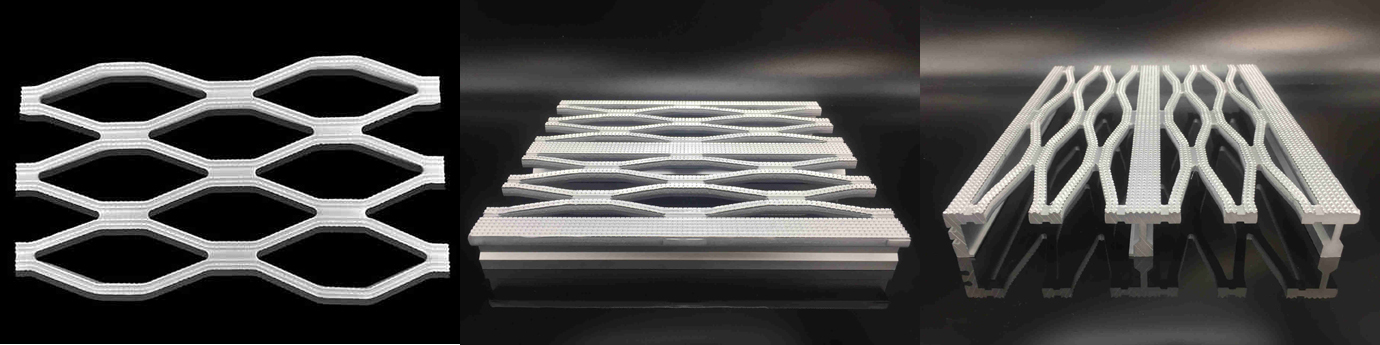

Flush Top Aluminum Grating

The flush top bar aluminum grating is with clean crisp lines. The diamond shaped cross bars are flush with bearing bars and are also permanently locked under a hydraulic pressured swaging process.


Surface Treatment

  • Mill Finish

  • Anodizing

  • Powder Coating


Scope of application

  • Drain Cover

  • Platform

  • Walkway

  • Rack

  • Fence


Flush Top Aluminum Grating
Flush Top Aluminum Grating
Flush Top Aluminum Grating
Flush Top Aluminum Grating

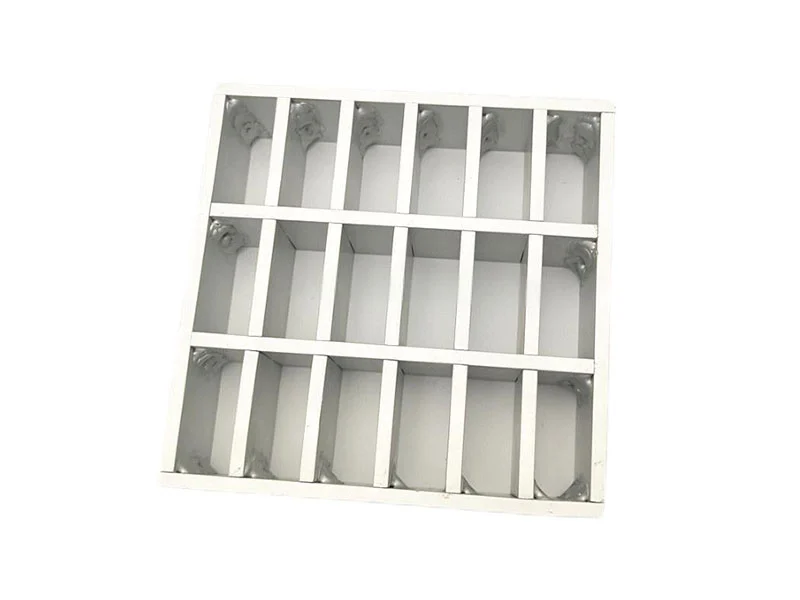

Press-Locked Aluminum Grating

The plug-in/press-lock aluminum grating is flush with the crossbar, increasing the contact area. The flat aluminum and crossbar are precisely slotted and hydraulically pressed together to form a tight lock, with greater load-bearing capacity than conventional aluminum grating. The grating is available in a variety of spacings to provide 1/4" or 1/2" openings in accordance with the Americans with Disabilities Act (July 1991). The plug-in/press-lock aluminum grating is another excellent choice for architectural decoration products with its beautiful appearance and secure connection. Non-slip and serrated surfaces are available.

Surface Treatment

  • Mill Finish

  • Anodizing

  • Powder Coating

Scope of application

  • Drain Cover

  • Platform

  • Walkway

  • Rack

  • Fence

Press-Locked Aluminum Grating
Press-Locked Aluminum Grating
Press-Locked Aluminum Grating
Press-Locked Aluminum Grating

Aluminum Walkway

Aluminum walkway products are widely used in industrial and commercial facilities, and the products meet OSHA safety standards and building codes. Aluminum walkways can be suspended from ceilings, installed on the ground or adjacent to buildings, or installed on building exterior walls.


Aluminum Walkway

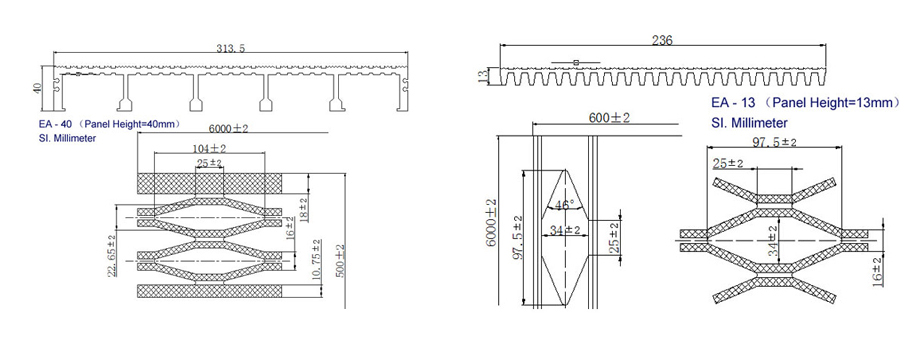

Typical Aluminum Walkway Drawings

Typical Aluminum Walkway Drawings


Aluminum Walkway Loads and Deflections Table


TypeLayout
Span
500
Span
600
Span
700
Span
800
Span
900
Span
1000






EWG13
SINGLE PANELU4.702.701.500.800.60






D2.503.003.504.004.50






EWG22SINGLE PANELU9.406.304.202.902.101.40





D2.503.003.504.004.504.90





EWG13
DOUBLE PANELU6.603.802.101.100.80






D2.503.003.504.004.50






EWG22DOUBLE PANELU13.208.805.904.102.902.00





D2.503.003.504.004.504.90




















TypeLayout
Span
750
Span
900
Span
1050
Span
1200
Span
1350
Span
1500
Span
1650
Span
1800
Span
1950
Span
2100
Span
2250
Span
2400
EWG30SINGLE PANELU22.8013.108.205.503.802.802.001.601.200.900.700.60
D3.704.605.105.906.607.408.208.909.6010.4011.2011.90

U= Uniformly Distributed Load in Kilopascals(Kpa or KN/m²)

D=Maximum deflection in millimeters(mm)

Double Panel means two panels side-by-side installation

Aluminum Grating Application

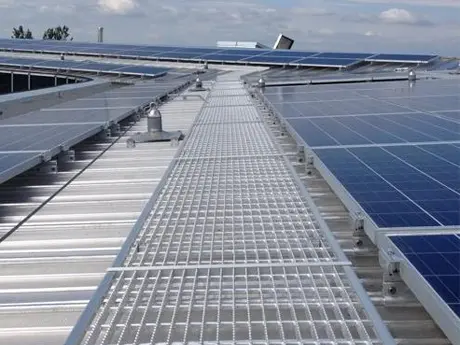

Rooftop photovoltaic maintenance walkway 1
Rooftop photovoltaic maintenance walkway 1

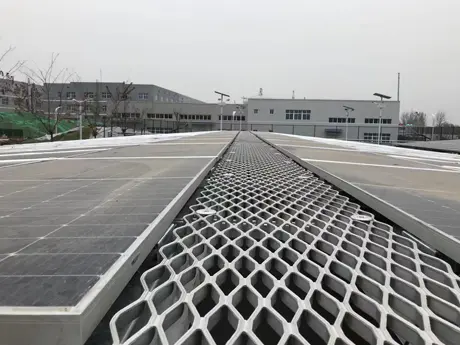

Rooftop photovoltaic maintenance walkway 2
Rooftop photovoltaic maintenance walkway 2

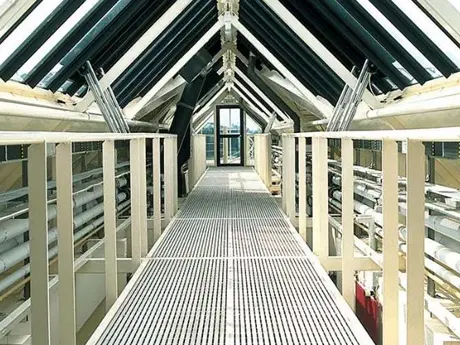

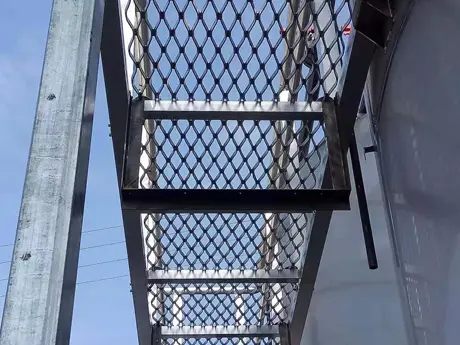

Chemical plant maintenance walkway 1
Chemical plant maintenance walkway 1
Chemical plant maintenance walkway 2
Chemical plant maintenance walkway 2

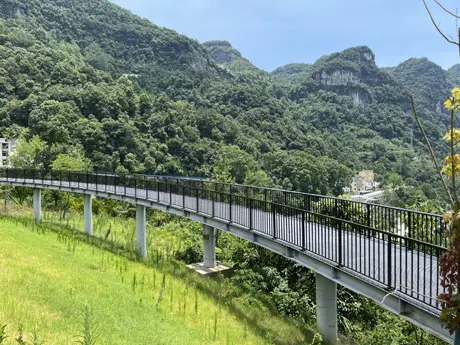

Urban Leisure Trails 1
Urban Leisure Trails 1

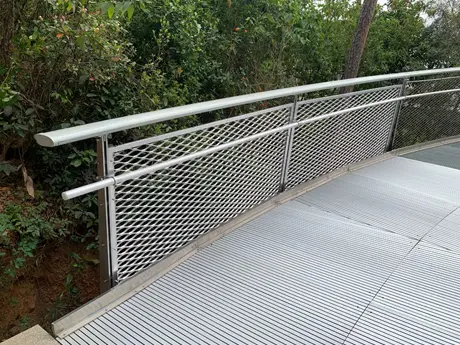

Urban Leisure Trails 2
Urban Leisure Trails 2

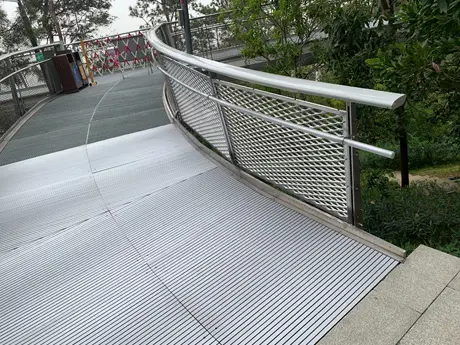

Urban Leisure Trails 3
Urban Leisure Trails 3

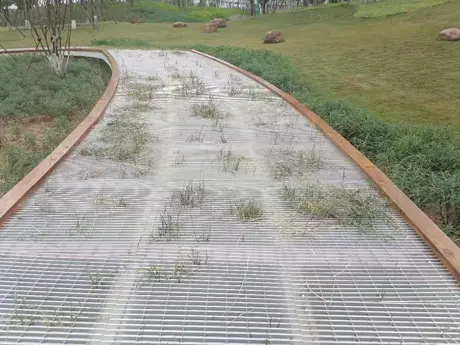

Park Trail 1
Park Trail 1

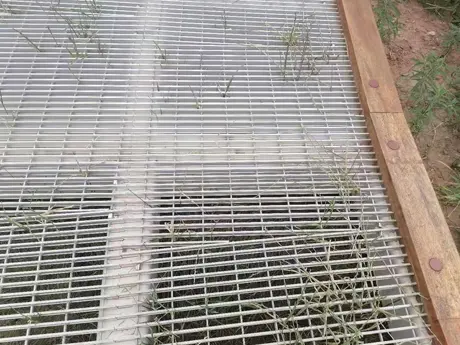

Park Trail 2
Park Trail 2

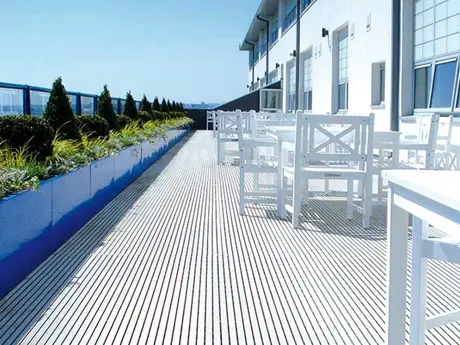

Building Platform Floor
Building Platform Floor

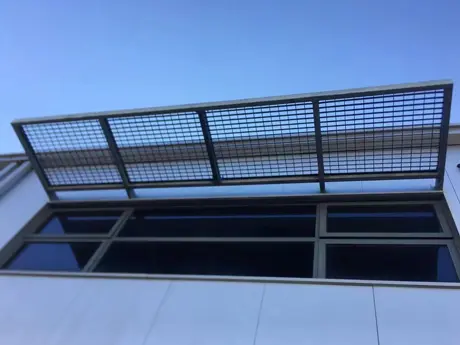

Balcony Sunshade
Balcony Sunshade

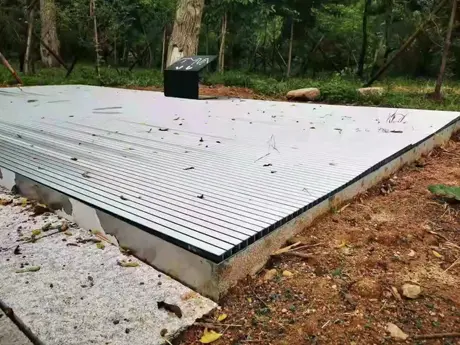

Manhole Cover
Manhole Cover
