Ball Joint Handrail

Ball joint railings are usually composed of columns, crossbars, handrails and ball joints.

The hollow ball on the column is used as a connection point to combine the handrails, crossbars, etc., and then fixed to the ground, steel grating, etc. through the bottom plate at the bottom of the column.

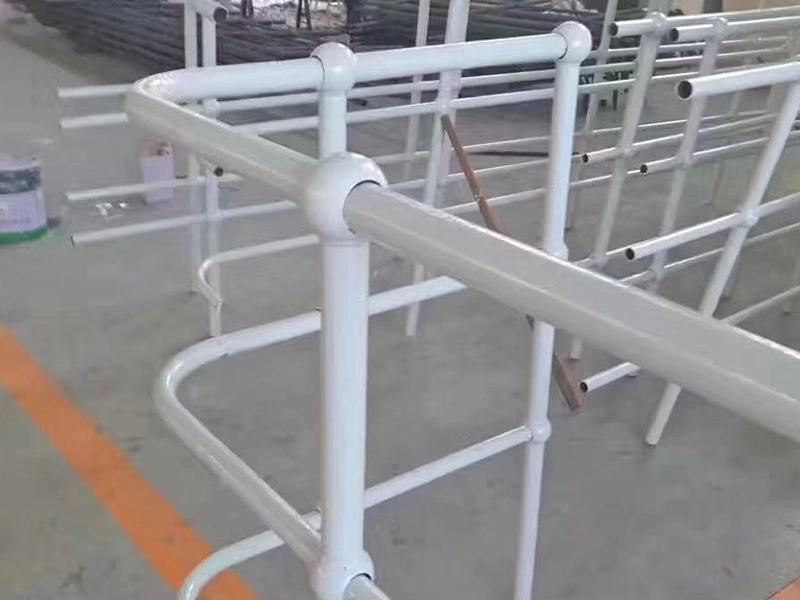

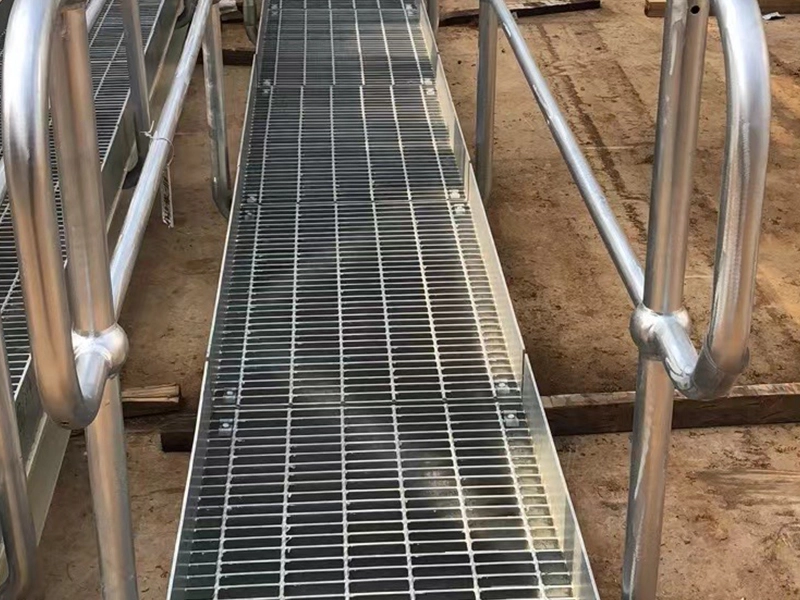

ball joint handrail

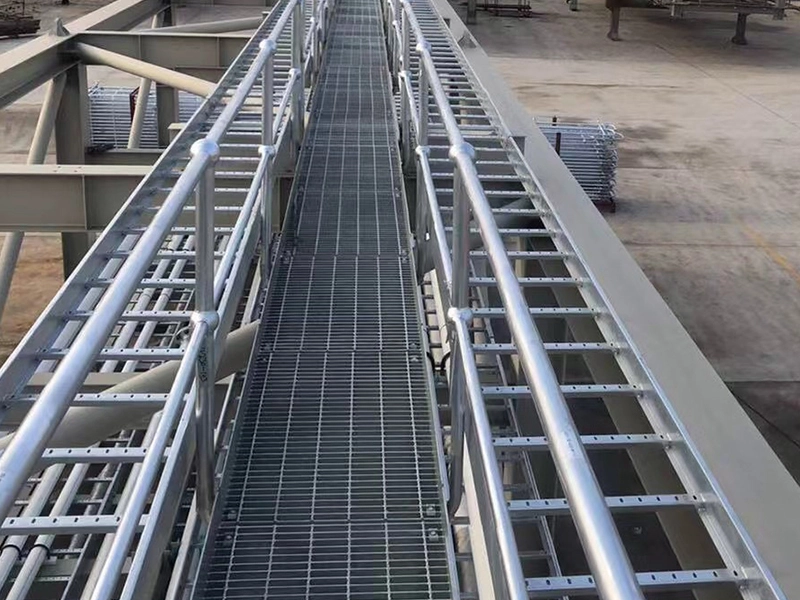

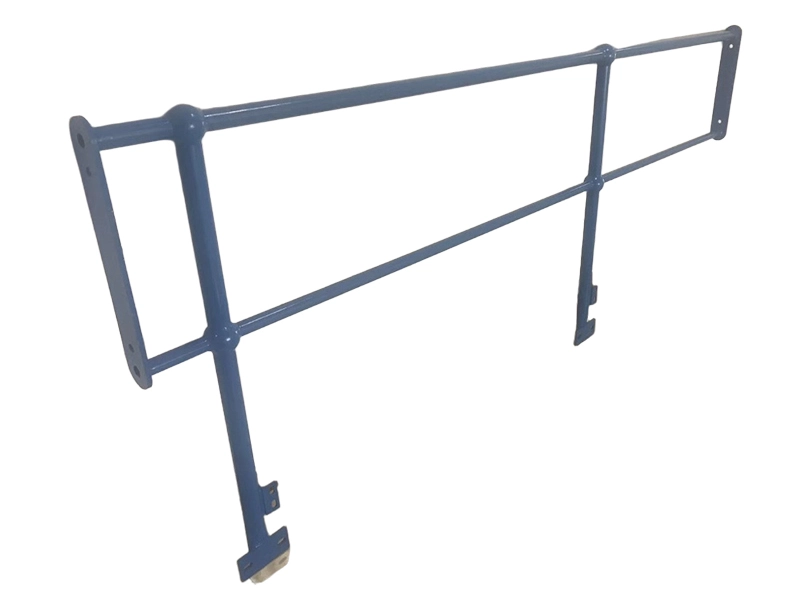

handrail ball joint

Features of Ball Joint Handrail

  • Easy to install:

    The modular design makes the installation easy and quick, which can shorten the construction period and reduce labor costs.


  • Sturdy and durable:

    The spherical connection makes its structure strong and can withstand high-intensity pressure and impact, with good stability and impact resistance.


  • Beautiful and novel:

    The simple and smooth shape and bright lines give people a modern and fashionable feeling, which can be integrated with various architectural styles.


  • Corrosion resistance:

    Usually hot-dip galvanized or stainless steel materials are used, which can effectively resist corrosion, oxidation and other chemical erosion, extend service life and reduce maintenance costs.


  • Highly customizable:

    Users can freely choose parameters such as column spacing, handrail diameter, railing height, etc. according to project requirements to meet the actual needs of different construction sites.

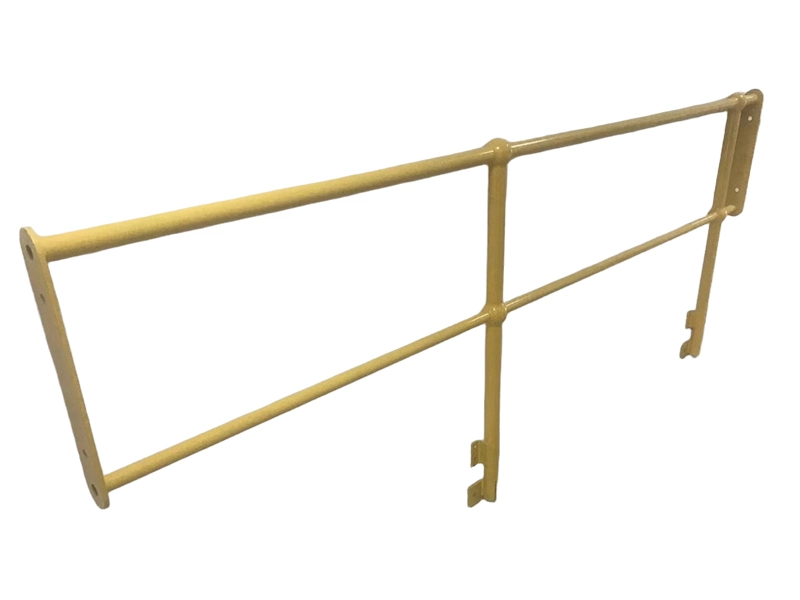

Ball Joint Handrail

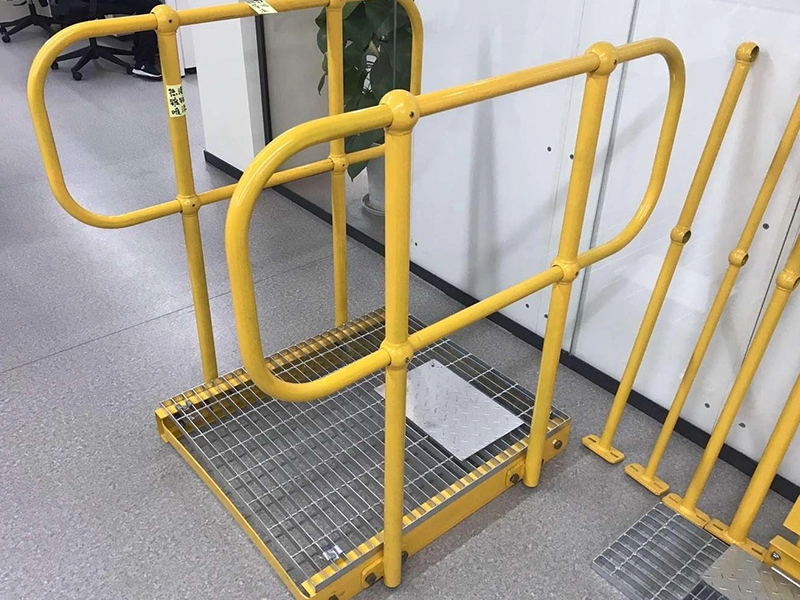

Ball Joint Handrail
Ball Joint Handrail
Ball Joint Handrail

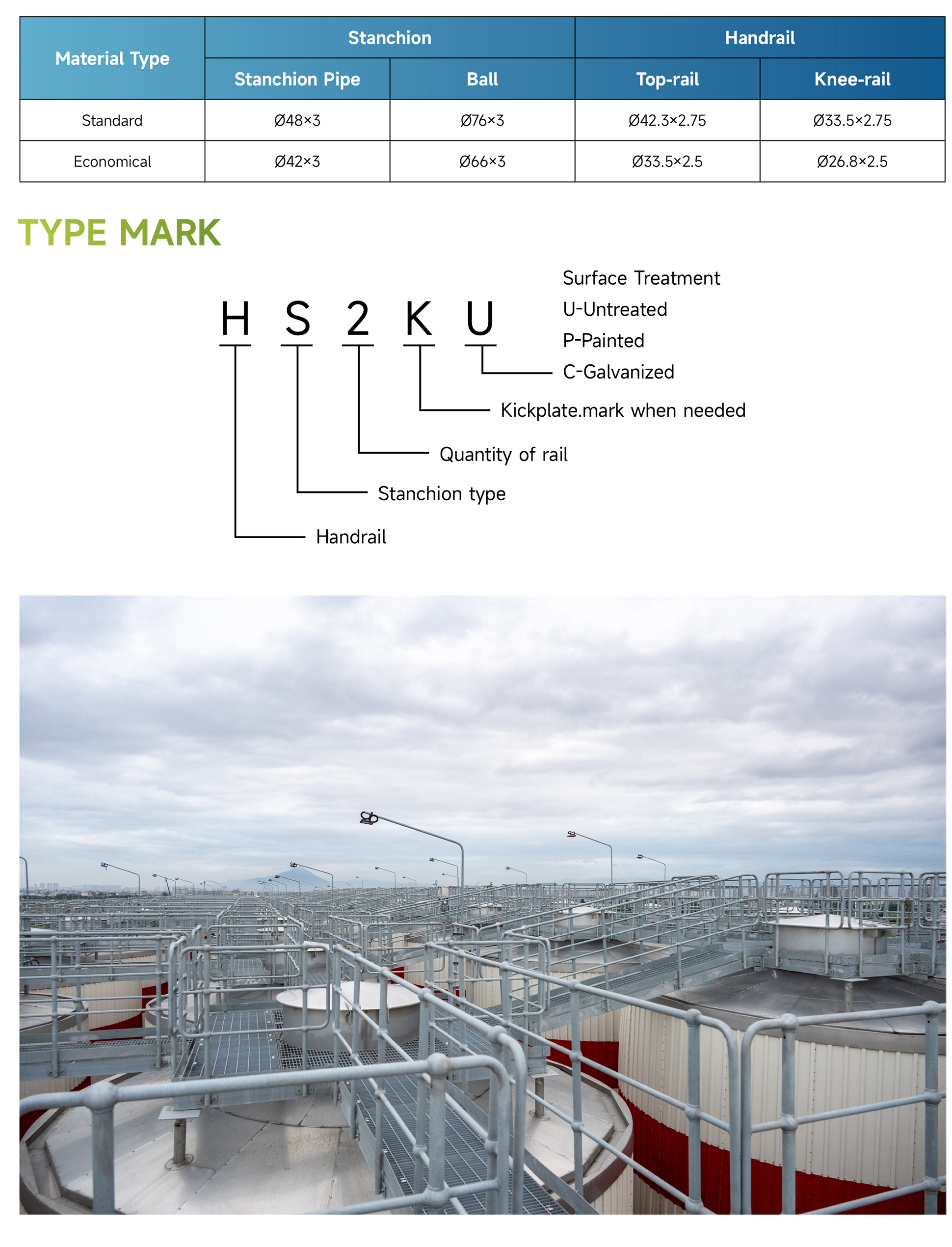

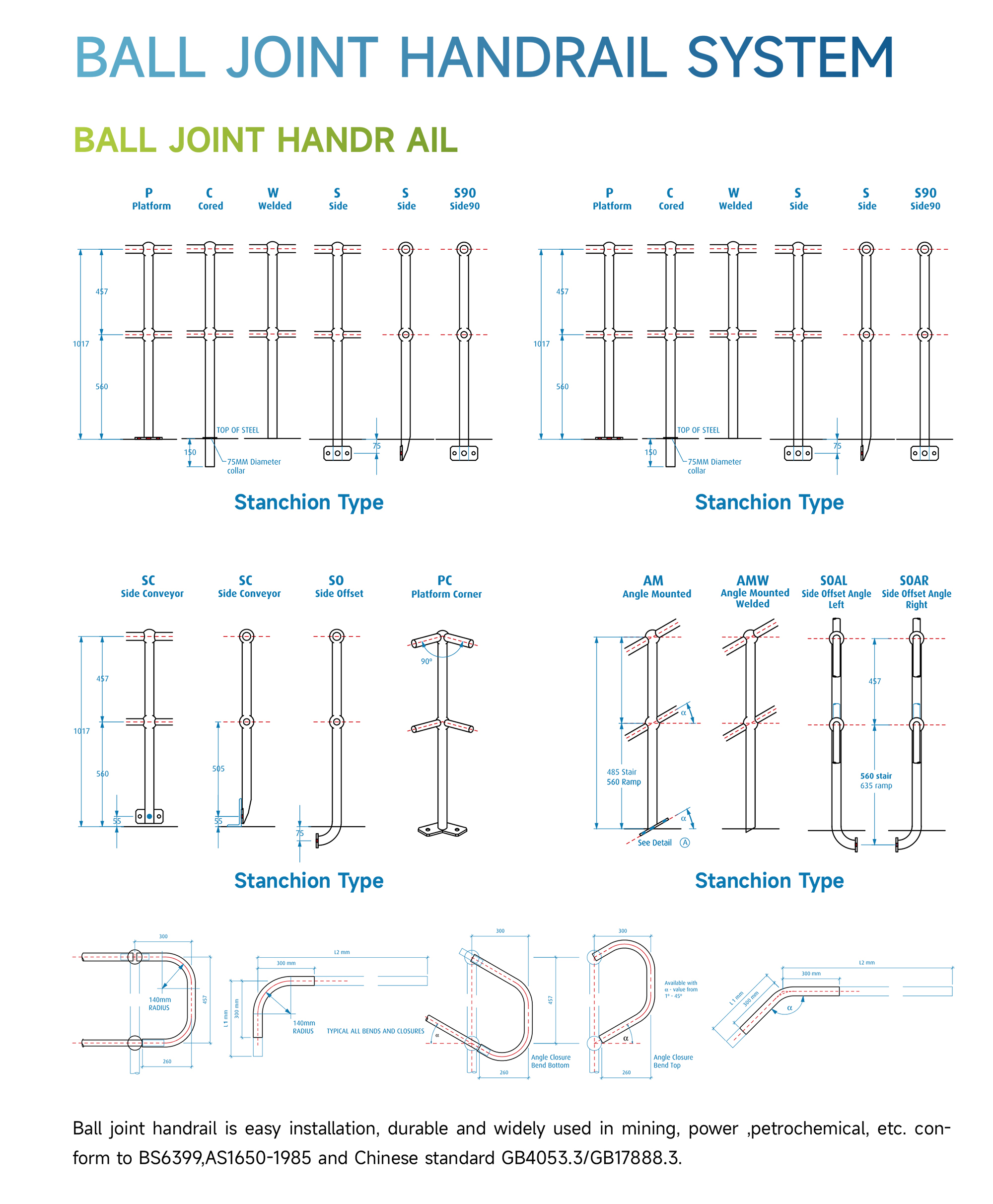

Ball Joint Railing Specification

steel grating products

steel grating china

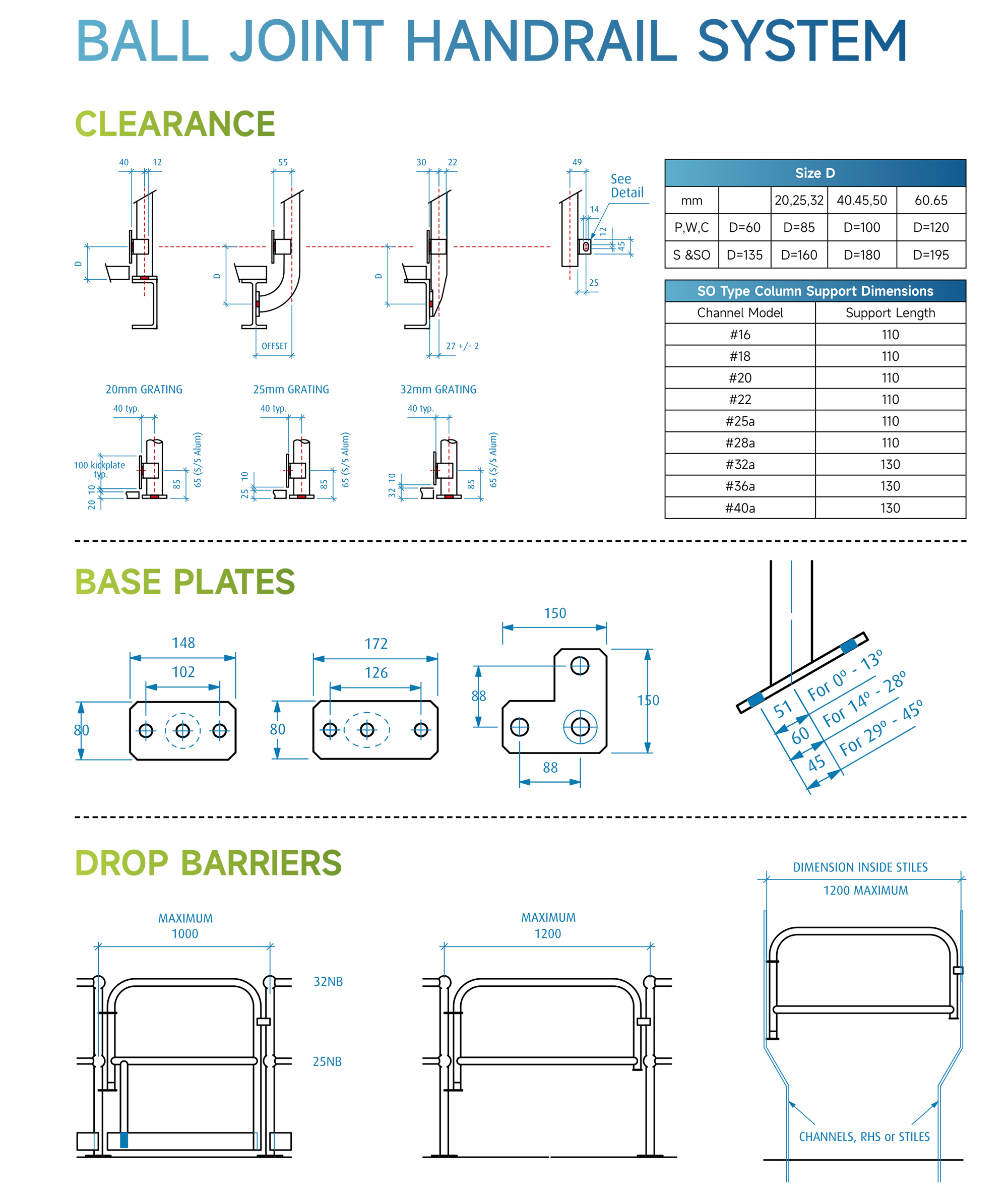

Installation Method of Ball Joint Handrail

  • Column installation: It can be welded on the embedded iron or steel structure, or installed on the non-metallic ground with expansion bolts, and can also be installed on the steel structure with hexagonal bolts.


  • Connection between pipe and column, pipe and pipe: generally adopt the method of pipe core welding.


  • Connection at corners and ends: Corners need to be specially designed and connected according to actual conditions; end connection methods include welding, wall punching insertion, pipe seat, head, blind hole column, etc


Ball Joint Handrail
Ball Joint Handrail
Ball Joint Handrail
Ball Joint Handrail
Ball Joint Handrail
Ball Joint Handrail

Various Surface Treatment Methods

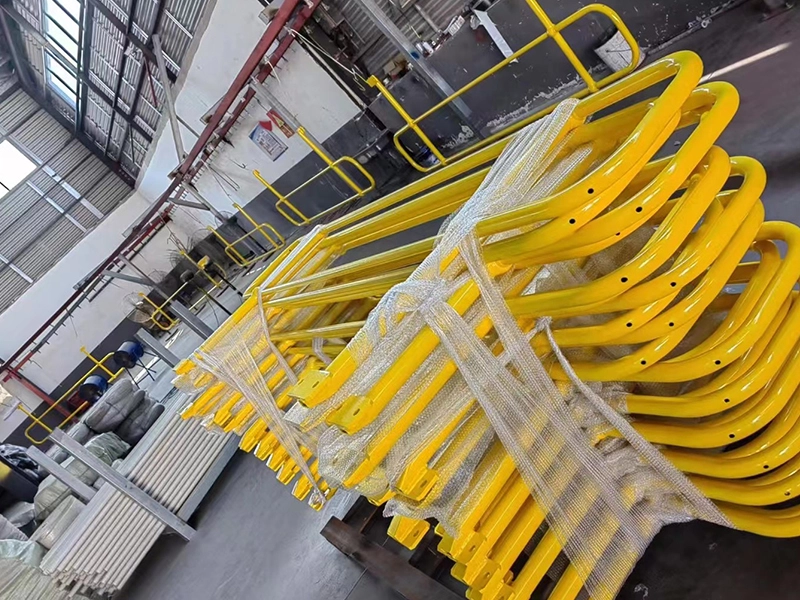

Surface Painted
Surface Painted
Hot Dip Galvanization
Hot Dip Galvanization

Application of Ball Joint Handrail

Click here to see the application of ball joint handrail for mines.


Application of Ball Joint Handrail
Application of Ball Joint Handrail
Application of Ball Joint Handrail
Application of Ball Joint Handrail
