Ball Proof Grating

Ball proof grating are open mesh grating used to prevent objects from falling through the gaps between the load-bearing bars. Usually, 35 mm or 20 mm spheres/balls are not allowed to pass through. The grating are made with smaller clear hole spacing. Ball proof grating are usually used in the offshore field. They can effectively prevent objects from falling on people and objects below the grille platform above.


ball-proof-grating-price

Where Do You Need Ball Proof Grating?

Any risky walkway platform, where there are pedestrians or equipment that prevents installation.

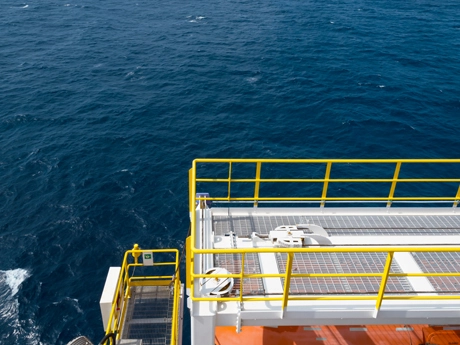

  • Offshore platform

  • Equipment maintenance walkway and platform

  • Maintenance platform

  • Chemical platform, etc.


According to the manufacturing process, it can be divided into small spacing grating and round bar added grating.The small mesh spacing grating controls the minimum bearing bar spacing to 35mm and 20mm or smaller to ensure that objects do not fall under the grating.

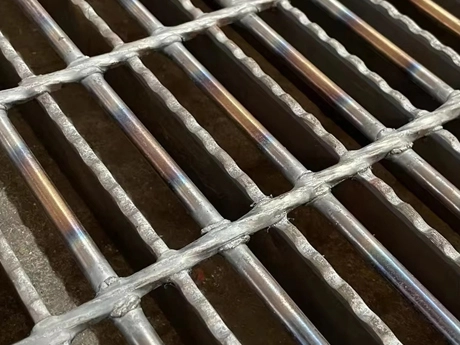

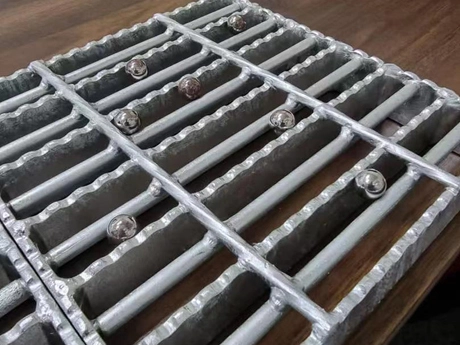

Add round bar ball proof grating. Generally, the grating with 30mm bearing bar spacing is added with 6mm or 8mm round steel in the middle to ensure that the 15mm small balls do not fall. Compared with directly making small spacing gratings, this method is more economical, so it is widely used in the marine and offshore area.

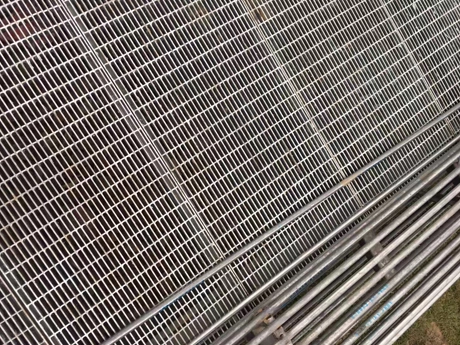

Ball Proof Grating
Ball Proof Grating
Ball Proof Grating
Ball Proof Grating
Ball Proof Grating
Ball Proof Grating

Regular Ball Proof Grating Specification

ModelSpecificationGratingRound barTypeTreatment
BPG1D6(W255/30/100SG)W255/30/100SGØ6Round bar ball proof gratingHDG&Mill Finished
BPG2D8(W255/30/100SG)W255/30/100SGØ8Round bar ball proof gratingHDG&Mill Finished
BPG3D6(W325/30/100SG)W325/30/100SGØ6Round bar ball proof gratingHDG&Mill Finished
BPG4D8(W325/30/100SG)W325/30/100SGØ8Round bar ball proof gratingHDG&Mill Finished
BPG5W255/20/100SGW255/20/100SG
Small mesh ball proof gratingHDG&Mill Finished
BPG6W325/20/100SGW325/20/100SG
Small mesh ball proof gratingHDG&Mill Finished


Features of Painted Steel Grating

  • Strong aesthetics

    Red, yellow, blue, white, green and other colors can be selected according to needs.


  • Lower cost

    Compared with surface treatment methods such as hot-dip galvanizing, the processing cost of painted steel grating is lower.


  • Medium anti-corrosion

    It has a certain anti-rust ability and can resist corrosion of steel from the external environment to a certain extent.


  • Diverse performance

    It has ventilation, lighting, heat dissipation, explosion-proof, anti-slip and other properties, and can effectively prevent dirt accumulation.


  • Good load-bearing capacity

    Made of high-quality steel, negative flat steel and twist steel are reasonably arranged and welded, with high load-bearing capacity
