Drill Through Steel Grating

Drill through steel grating generally has holes in the center of the height of the bearing bars, penetrates the round cross bars, and welded firmly to the load-bearing flat steel.

This form of grating is often used in heavy-duty steel gratings. Compared with ordinary welded steel grating, the surface of perforated steel grating is smoother.

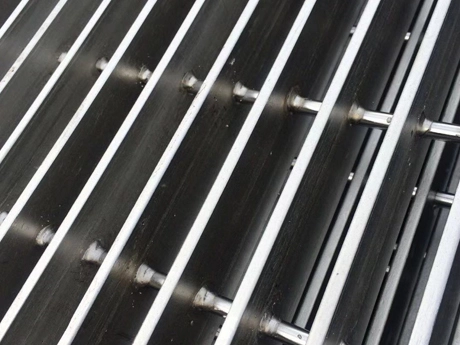

drill-through-steel-grating-price

Typical Drawing of Drill Through Steel Grating

Drill Through Steel Grating With Normal Banding
Drill Through Steel Grating With Normal Banding

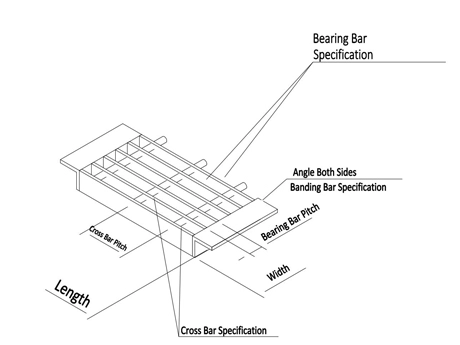

Drill Through Steel Grating With Angle Banding
Drill Through Steel Grating With Angle Banding

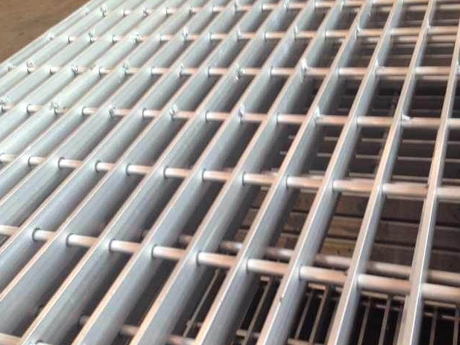

Drill Through Steel Grating With Plain Surface
Drill Through Steel Grating With Plain Surface
Drill Through Steel Grating With Serrated Surface
Drill Through Steel Grating With Serrated Surface

Regular Specification of Drill Through Steel Grating

Bearing Bar SizeCross Bar SizeBearing Bar Spacing(Center to Center)Cross Bar Spacing(Center to Center)
40 x 5 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
45 x 5 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
50 x 5 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
60 x 5 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
75 x 5 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
100 x 5 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
120 x 5 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
40 x 6 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
45 x 6 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
50 x 6 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
60 x 6 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
75 x 6 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
100 x 6 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
120 x 6 mmØ8 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
60 x 9 mmØ10 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
75 x 9 mmØ10 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
100 x 9 mmØ10 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
120 x 9 mmØ10 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
150 x 9 mmØ10 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm
200 x 9 mmØ10 mm25 mm, 30 mm, 40mm, 50 mm50mm, 100mm



Features of Drill Through Steel Grating

  • Steel grating is more integrated

  • Effectively avoid the wear of twisted cross bar

  • The overall steel grating is more beautiful


Drill Through Steel Grating
Drill Through Steel Grating
Drill Through Steel Grating
Drill Through Steel Grating
Drill Through Steel Grating
Drill Through Steel Grating
Drill Through Steel Grating
Drill Through Steel Grating
