Sino Grating provides various specifications of FRP Grating.

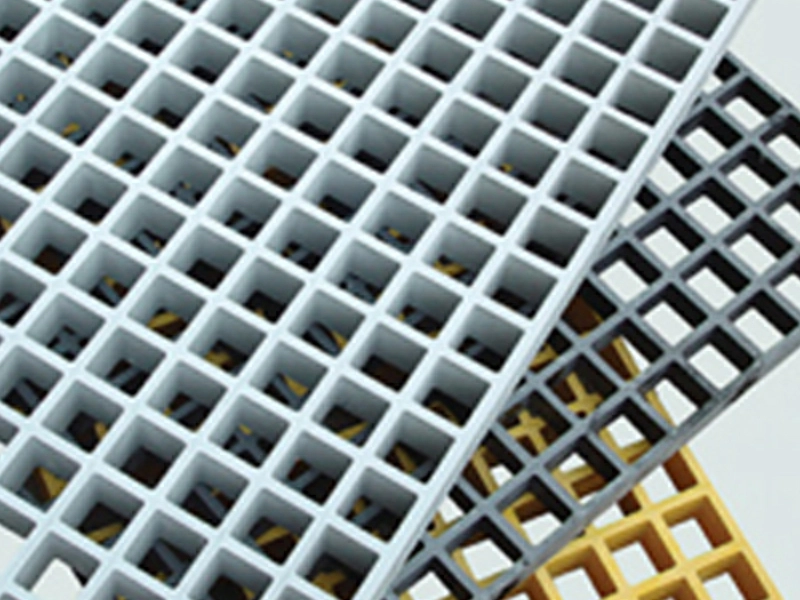

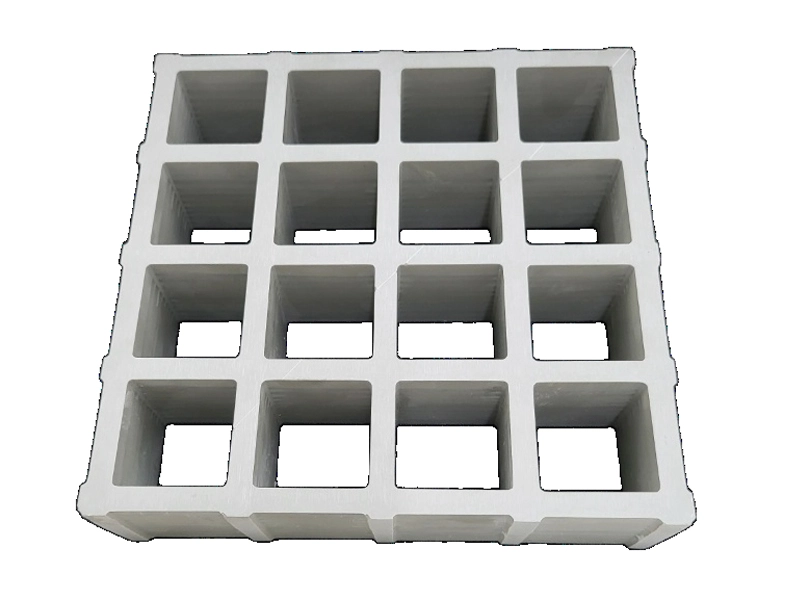

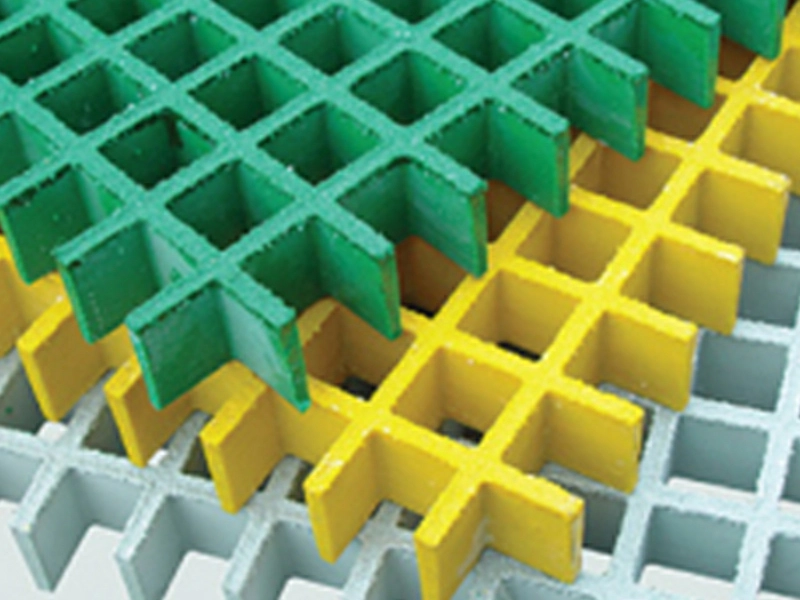

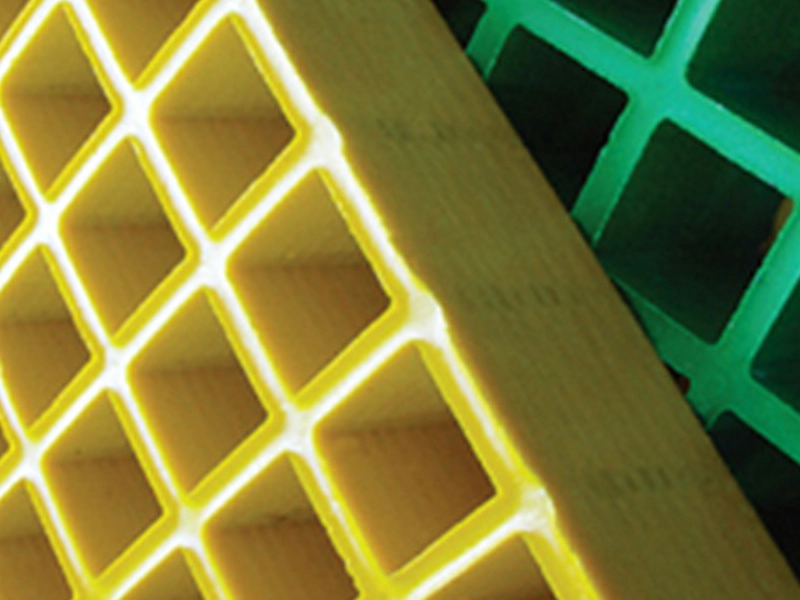

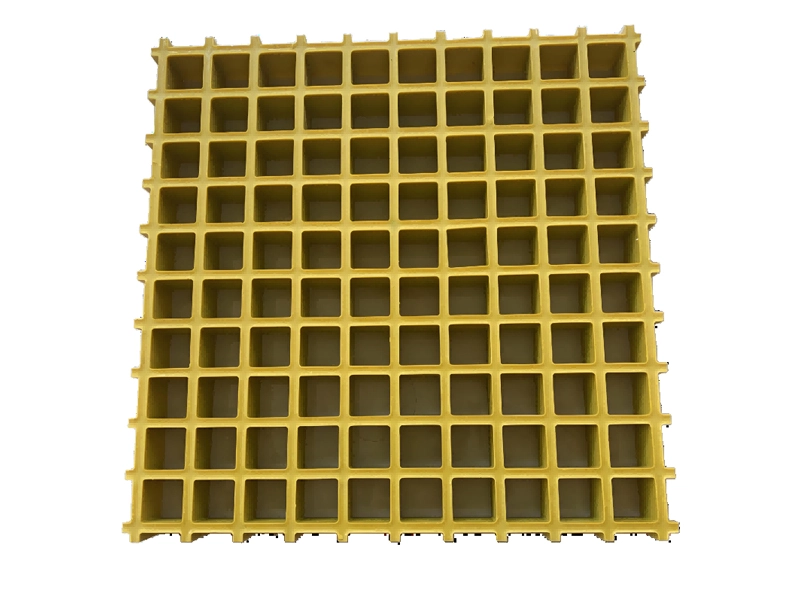

Serial Number | Height(mm) | Mesh size(mm) | Panel Size(mm) | Open Area |
1 | 13 | 38×38 | 1220×3660 | 78% |
2 | 15 | 38×38 | 1220×3660 | 78% |
3 | 20 | 38×38 | 1220×3660 | 65% |
4 | 25 | 38×38 | 1220×3660 | 68% |
5 | 30 | 38×38 | 1220×3660 | 68% |
6 | 35 | 38×38 | 1220×3660 | 56% |
7 | 38 | 38×38 | 1220×3660 | 68% |
8 | 50 | 38×38 | 1220×3660 | 56% |
9 | 60 | 38×38 | 1220×3660 | 56% |
10 | 25 | 40×40 | 1007×4047 | 67% |
11 | 30 | 40×40 | 1247×4047 | 67% |
12 | 40 | 40×40 | 1247×4047 | 67% |
13 | 13 | 50×50 | 1220×4000 | 82% |
14 | 13 | 50.8×50.8 | 1220×4000 | 82% |
15 | 25 | 50×50 | 1220×3660 | 78% |
16 | 40 | 50×50 | 1220×3660 | 80% |
17 | 50 | 50×50 | 1220×3660 | 78% |
18 | 63 | 50×50 | 1220×3660 | 78% |
19 | 25 | 83×83 | 1007×4047 | 84% |
20 | 40 | 83×83 | 1007×4047 | 84% |
21 | 30 | 12.7×12.7/40×40 | 1220×3660 | 30% |
22 | 25 | 19×19/38×38 | 1220×3660 | 40% |
23 | 38 | 19×19/38×38 | 1220×3660 | 40% |
24 | 14 | 20×20/40×40 | 1247×4047 | 42% |
25 | 30 | 20×20/40×40 | 1007×4047 | 42% |
26 | 40 | 20×20/40×40 | 1007×4047 | 42% |
27 | 50 | 25×25/50×50 | 1524×4000 | 55% |
28 | 38 | 26×26/52×52 | 1220×3660 | 60% |
29 | 38 | 25×50 | 1220×3660 | 48% |
30 | 50 | 25×50 | 1220×3660 | 48% |
31 | 25 | 25×100 | 1007×3007 | 67% |
32 | 30 | 25×100 | 1007×3007 | 67% |
33 | 38 | 25×100 | 1220×3660 | 62% |
34 | 38 | 38×100 | 1220×3660 | 65% |
35 | 38 | 25×152 | 1220×3660 | 63% |
36 | 38 | 38×152 | 1220×3660 | 67% |
37 | 50 | 38×100 | 1220×3660 | 62% |

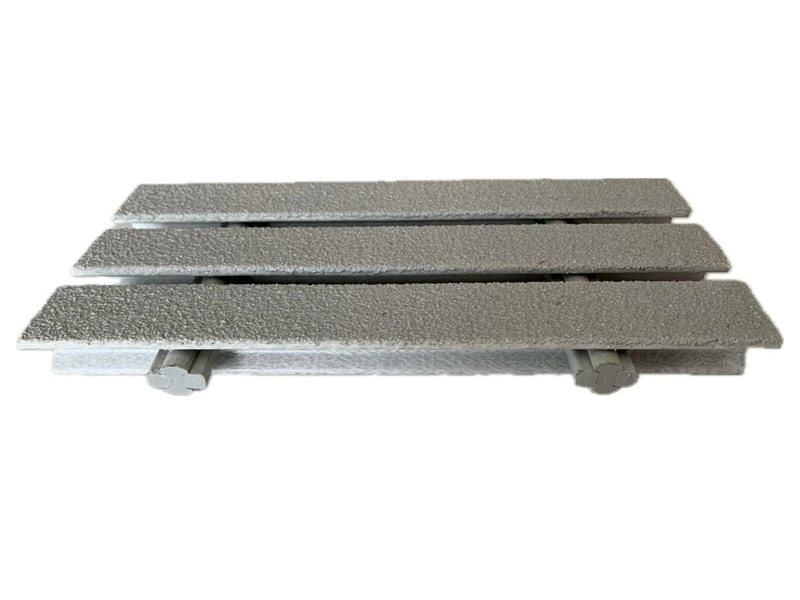

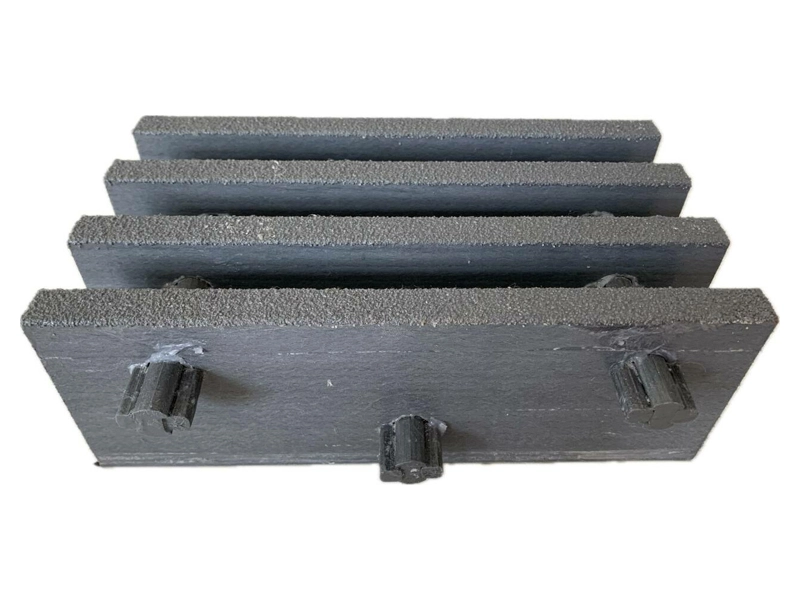

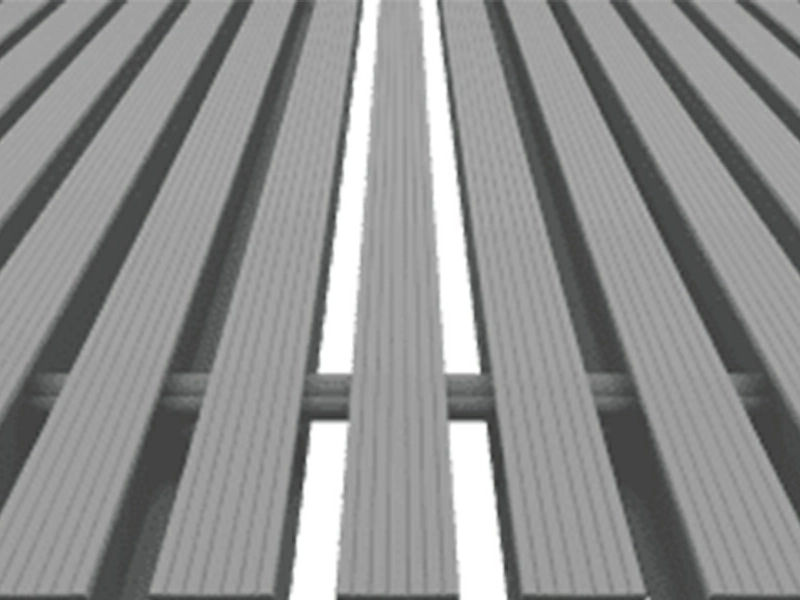

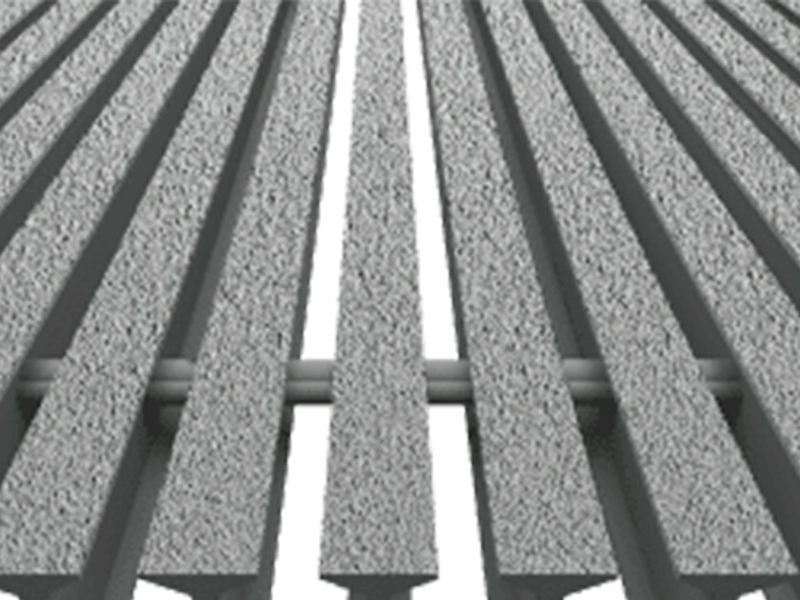

Serial Number | Type | Thickness(mm) | Size of Bearing Bar (Top/Bottom)mm | Weight (kg/m2) | Open Area |
1 | I-4010 | 25.4 | 15.24/15.24 | 18.6 | 40% |
2 | I-5010 | 25.4 | 15.24/15.24 | 14.3 | 50% |
3 | I-6010 | 25.4 | 15.24/15.24 | 12.8 | 60% |
4 | I-40125 | 31.75 | 15.24/15.24 | 20 | 40% |
5 | I-50125 | 31.75 | 15.24/15.24 | 17.4 | 50% |
6 | I-60125 | 31.75 | 15.24/15.24 | 13.8 | 60% |
7 | I-4015 | 38.1 | 15.24/15.24 | 23.6 | 40% |
8 | I-5015 | 38.1 | 15.24/15.24 | 19.82 | 50% |
9 | I-6015 | 38.1 | 15.24/15.24 | 17.8 | 60% |
10 | I-4020 | 50.8 | 15.24/15.24 | 30.82 | 40% |
11 | I-5020 | 50.8 | 15.24/15.24 | 26.62 | 50% |
12 | I-6020 | 50.8 | 15.24/15.24 | 22.02 | 60% |
13 | T-1210 | 25.4 | 38.1/15.24 | 17.54 | 12% |
14 | T-1810 | 25.4 | 41.3/15.24 | 15.8 | 18% |
15 | T-2510 | 25.4 | 38.1/15.24 | 12.5 | 25% |
16 | T-3310 | 25.4 | 41.3/15.24 | 13.5 | 33% |
17 | T-3810 | 25.4 | 38.1/15.24 | 10.5 | 38% |
18 | T-1215 | 38.1 | 38.1/15.24 | 19.8 | 12% |
19 | T-2515 | 38.1 | 38.1/15.24 | 16.7 | 25% |
20 | T-3815 | 38.1 | 38.1/15.24 | 14.2 | 38% |
21 | T-5015 | 38.1 | 25.4/15.24 | 10.5 | 50% |
22 | T-3320 | 50.8 | 25.4/15.24 | 21.8 | 33% |
23 | T-5020 | 50.8 | 25.4/15.24 | 17.3 | 50% |
24 | HL-4020 | 50.8 | 15.24/15.24 | 70.1 | 40% |
25 | HL-5020 | 50.8 | 15.24/15.24 | 52.01 | 50% |
26 | HL-6020 | 50.8 | 15.24/15.24 | 44 | 60% |
27 | HL-6520 | 50.8 | 15.24/15.24 | 33.5 | 65% |
28 | HL-5825 | 63.5 | 15.88/15.88 | 48 | 58% |
