Press-Locked Steel Grating Factory

Press-lock steel grating, also known as plug-in steel grating, is a steel grating made of flat steel and crossbars of a certain size through grooving, plug-in, press-locking, welding, finishing and other processes. The following is a detailed introduction to press-lock steel grating.



Press-lock steel gratings are widely used in platforms, walkways, stair treads in power plants, steel mills, chemical plants, oil refineries, etc. Ditch covers, cable trench covers, parking platforms, subway and urban rail platforms, tunnel vents, docks, mines, sewage treatment plants, airports, ports and other places.

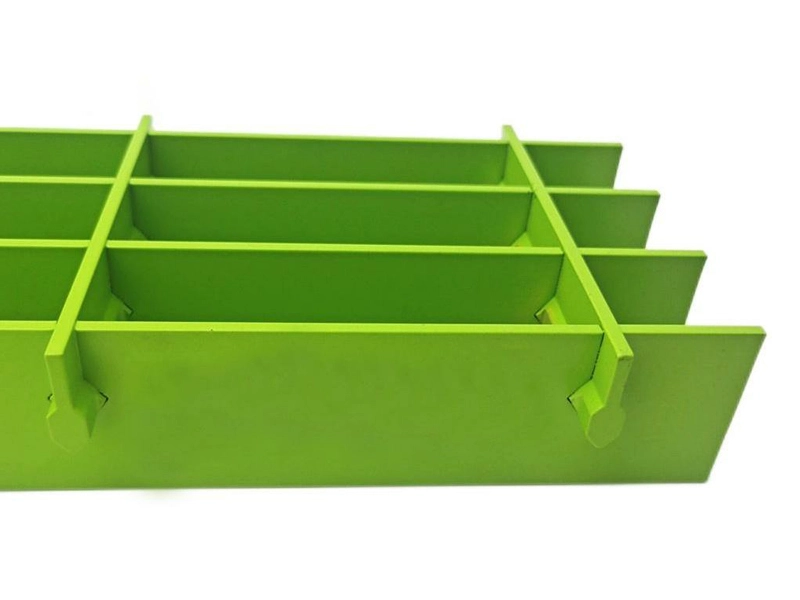

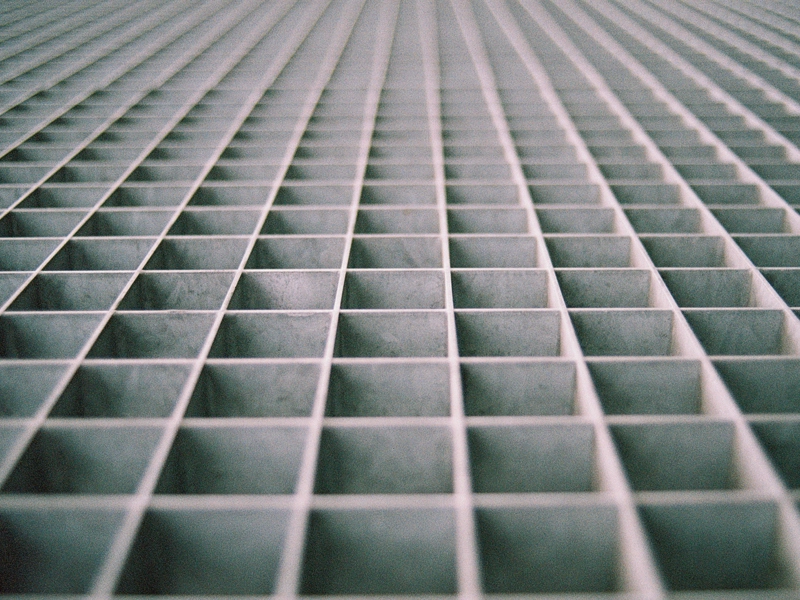

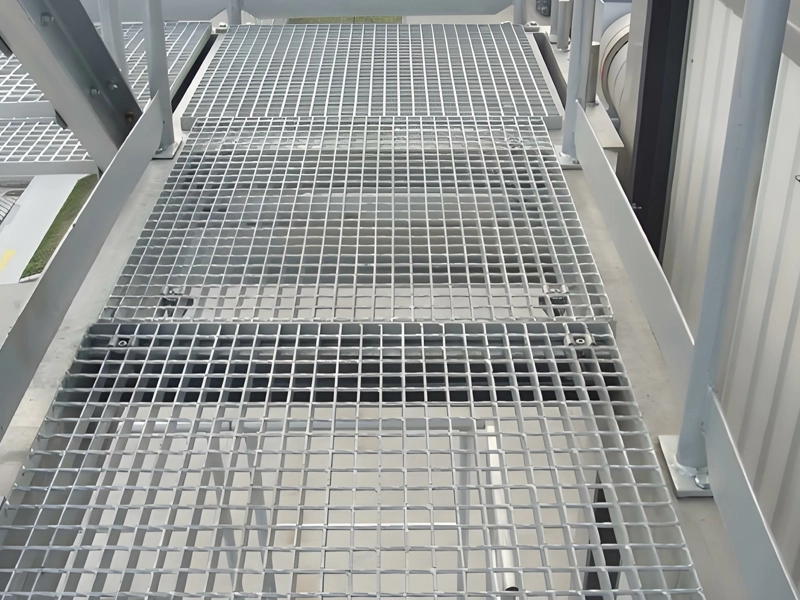

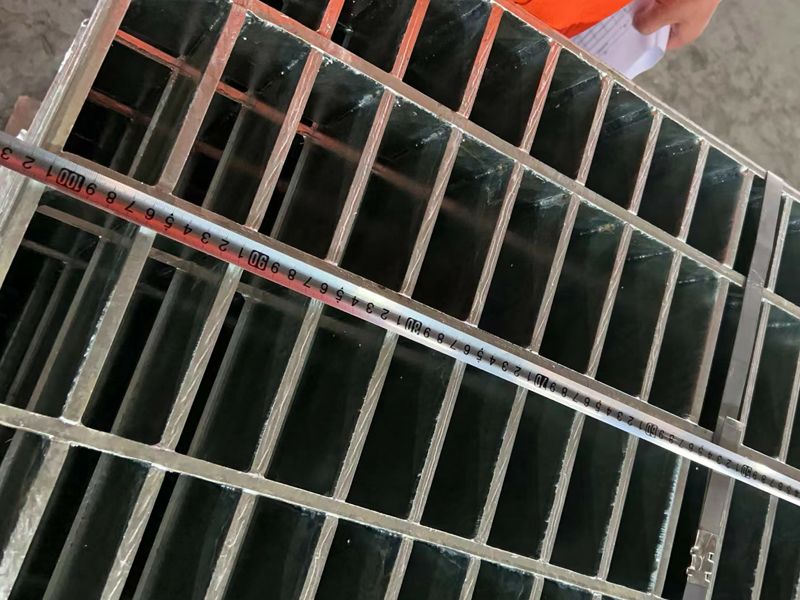

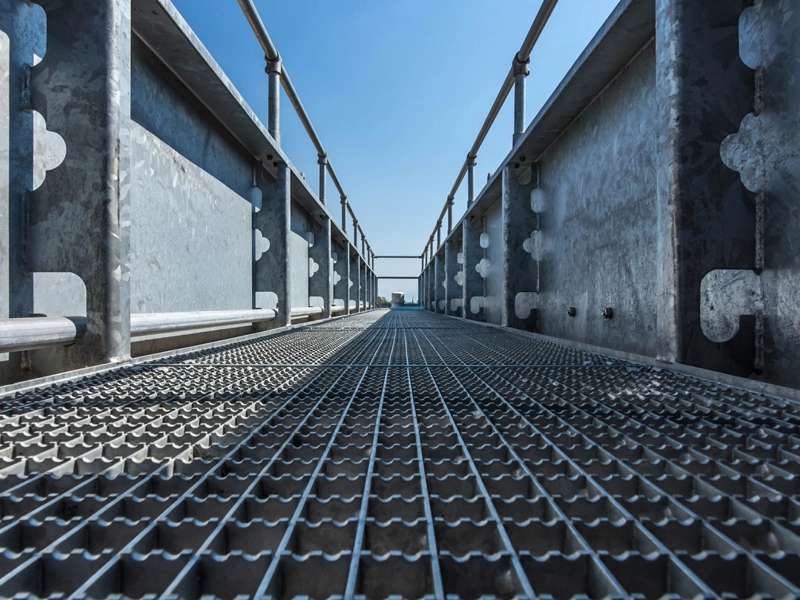

press locked grating

According to the production form of the product, Press-Locked Steel Grating can be divided into:

  • Ordinary type:

It is formed by cutting grooves in the load-bearing flat steel and then pressing and locking it with the cross bar flat steel. The length is usually less than 2000mm.

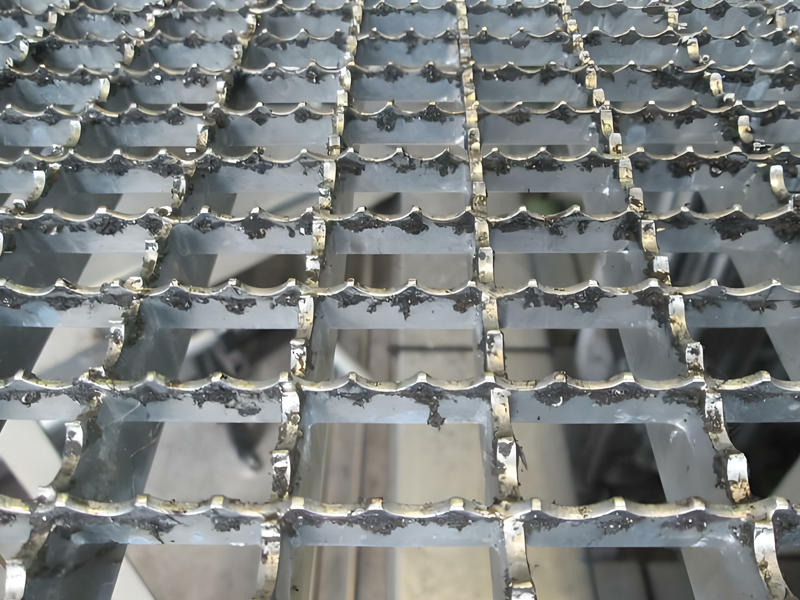

press locked bar grating

















  • Integral type:

The load-bearing flat steel and the cross bar flat steel have the same height, and the groove depth is 1/2 of the load-bearing flat steel, the length is usually less than 2000mm

press locked steel grating


















  • Sunshade type:

The load-bearing flat steel is slotted at 30° or 45°, and the slotted flat steel is slotted and pressed into shape. Steel gratings with other spacing and specifications can be processed according to different needs. Ordinary carbon steel, stainless steel, aluminum and other materials can be used.

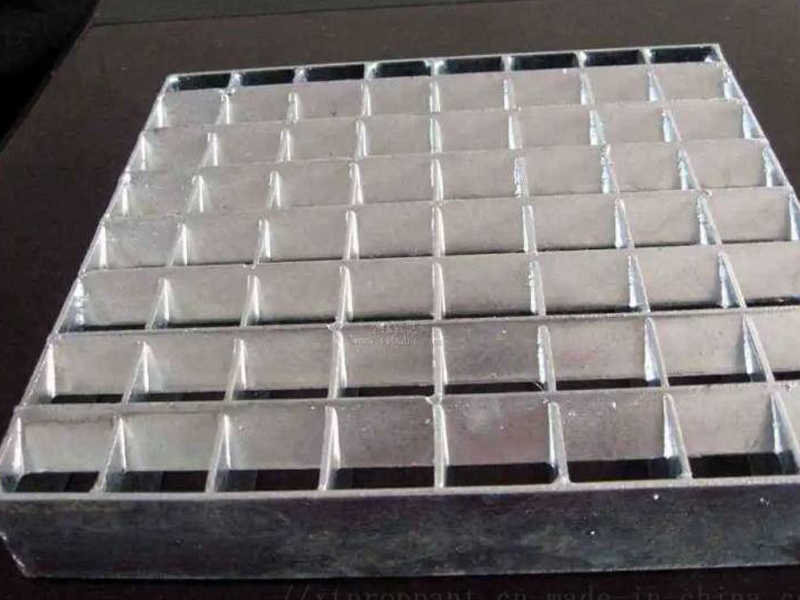

press welded grating


















  • Heavy-load type:

The high flat steel and the cross bar flat steel are interlocked and pressed into shape, which is suitable for occasions with high spans and loads.

press locked grating

















According to the material used, Press-Locked Steel Grating can be divided into:

1.Stainless steel press-lock steel grating
1.Stainless steel press-lock steel grating
2.Aluminum press-lock grating
2.Aluminum press-lock grating
3.Hot-dip galvanized press-lock steel grating
3.Hot-dip galvanized press-lock steel grating

Press Lock Grating Cross Bar Specification

Table 2 Cross bar height and thickness
Cross Bar HeightBearing Bar Thickness
15 mm2 mm
20 mm3 mm
25 mm5 mm
30 mm6 mm
32 mm10 mm
40 mm
50 mm
60 mm
70 mm
80 mm
90 mm
100 mm
120 mm
150 mm
* Cross bar with corresponding height and thickness can be provided according to customer needs


Press Lock Grating Bearing Bar Specification

Table 1 Bearing bar height and thickness
Bearing Bar HeightBearing Bar Thickness
25 mm2 mm
30 mm3 mm
32 mm5 mm
40 mm10 mm
50 mm
60 mm
70 mm
80 mm
90 mm
100 mm
120 mm
150 mm
* Flat steel with corresponding height and thickness can be provided according to customer needs


Press Lock Grating Pitch Specification

Table 3 Bearing bar and cross bar pitch
Bearing Bar Pitch Cross Bar Pitch
11 mm11 mm
20 mm20 mm
22 mm22 mm
25 mm25 mm
30 mm30 mm
33 mm33 mm
40 mm40 mm
44 mm44 mm
50 mm50 mm
66 mm66 mm
120 mm120 mm
* Bearing bar and cross bar pitch can be provided according to customer needs


Characteristics of Press Lock Grating

Structural performance

  • High strength and light structure

    Made of high-strength steel, it has high tensile and compressive strengths and can withstand large loads and impact forces; at the same time, the unique structural design makes it relatively light and easy to carry and install.

  • Good lateral force transmission

    Under the same load conditions, the press-lock steel grating can transmit better lateral forces, and less materials are required, which can effectively prevent the instability and tilt of large-sized load-bearing flat steel.

  • Strong bearing capacity

    Its mesh structure, load-bearing load and service life are comparable to those of press-welded gratings, and it is suitable for various places that need to withstand heavy loads, such as power plant platforms, sewage treatment plant maintenance platforms, parking lot platforms, etc.


Appearance design

  • Beautiful appearance

    The surface is glossy, the design is simple and generous, the lines are smooth, and it can be coordinated with the surrounding environment, adding beauty to buildings and projects. It can be used for indoor and outdoor decoration, ceilings, advertising plaques and other places.

  • Smooth surface

    The flat steel adopts a compression lock structure, which makes the appearance of the steel grating very smooth and flat. The surface is also very clean and clean. It is not easy to accumulate dirt, rain, snow and water. It has strong self-cleaning ability and is easy to maintain.


Installation and maintenance

  • Easy to install and disassemble

    Light weight and simple structure, no complex tools and equipment are required during the installation process, which can greatly save manpower and time costs; at the same time, it is also convenient for later disassembly and replacement.

  • Strong anti-corrosion ability

    Generally after hot-dip galvanizing, spraying and other anti-corrosion treatments, it can effectively resist corrosion from the atmosphere, water, chemicals, etc., extend the service life, and maintain good performance under harsh environmental conditions. The service life of 30-50 years reduces the cost of frequent replacement and maintenance.


Functional characteristics

  • Good ventilation and light transmittance

    The surface of the steel grating is a mesh structure with high permeability. It can effectively ventilate, lighten and dissipate heat. It can be used in places that require good ventilation and lighting conditions, such as warehouses, workshops, etc.

  • Good anti-slip and explosion-proof properties

    The flat steel and crossbars on the surface form a certain concave and convex texture, which increases the friction and has good anti-slip properties, which can effectively prevent people from slipping; at the same time, it can also play a certain explosion-proof role in some flammable and explosive places.

  • Diverse specifications

    The specifications of the flat steel spacing and crossbar spacing are rich and varied. For example, the bearing flat steel spacing is usually 30mm, 40mm, 50mm, 100mm, etc., and the crossbar spacing is usually 30mm, 40mm, 50mm, 100mm, etc., which can meet the various needs of different users and different places.


Application areas of Press Lock Grating

  • Residential buildings, apartments, etc.

  • Shopping malls, supermarkets, hotels, exhibition halls, theaters, etc.

  • Transportation facilities

  • Urban public areas

  • Factory workshops

  • Chemical, petroleum, electricity and other industries

  • Marine engineering

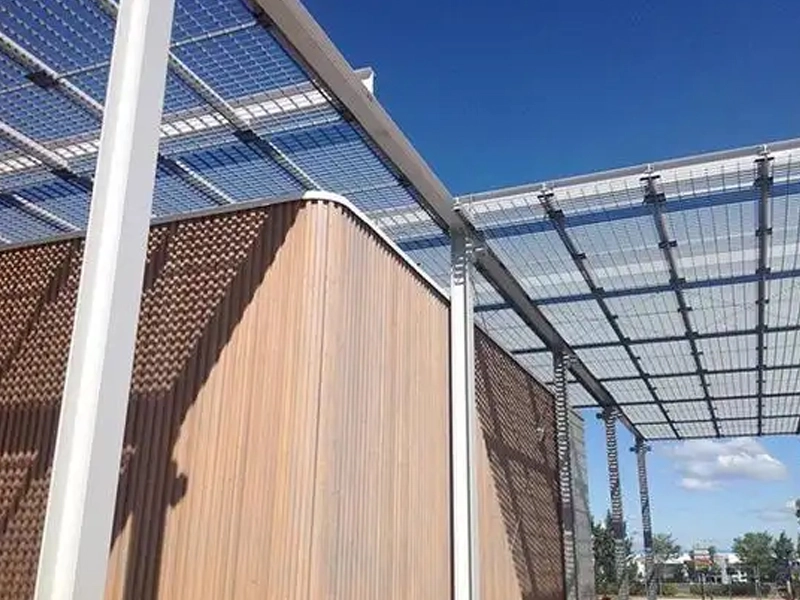

Press Locked Grating Applies for Sunshade Building
Press Locked Grating Applies for Sunshade Building

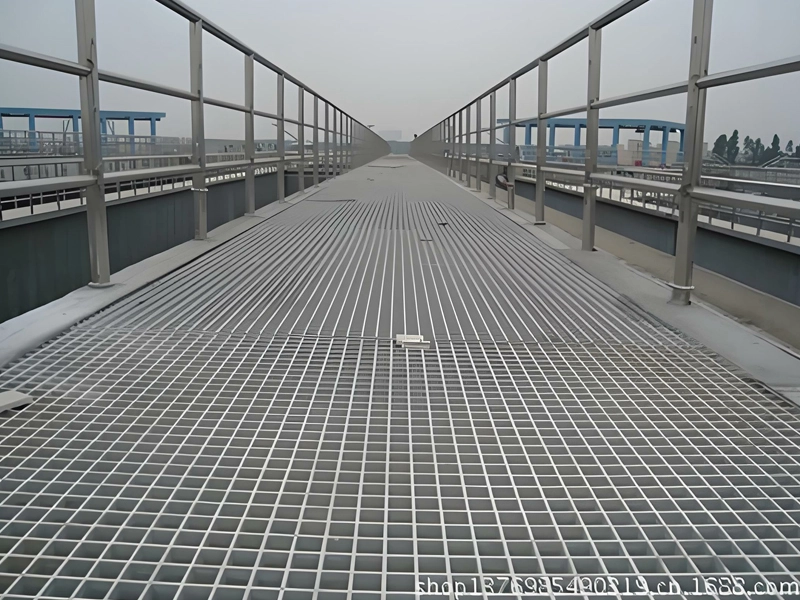

Press Locked Grating Applies for Sewage Treatment Plant Walkway
Press Locked Grating Applies for Sewage Treatment Plant Walkway

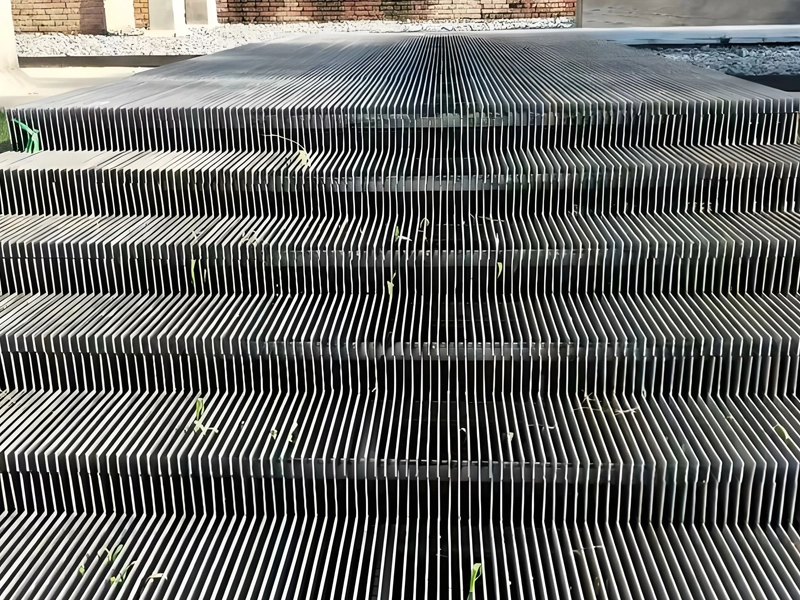

Press Locked Grating Applies for Park Trails and Stairs
Press Locked Grating Applies for Park Trails and Stairs
Press Locked Grating Applies for Chemical Plant Platform
Press Locked Grating Applies for Chemical Plant Platform

Classification of Press-Locked Steel Grating

  • Materials: low carbon steel and stainless steel.

  • Surface treatment: galvanized, painted or powder coated.

  • Surface type: smooth surface and serrated surface

  • Serrated surface type:

  1. PR/S1: Trapezoidal teeth on the bearing bar.

  2. PR/S2: Trapezoidal tooth both on the bearing bar and cross bar with the highest non-slip performance. In this three types. it is most popular.

  3. PR/S3: The non-slip tooth is applied to the connect components. It has the lowest non-slip performance.

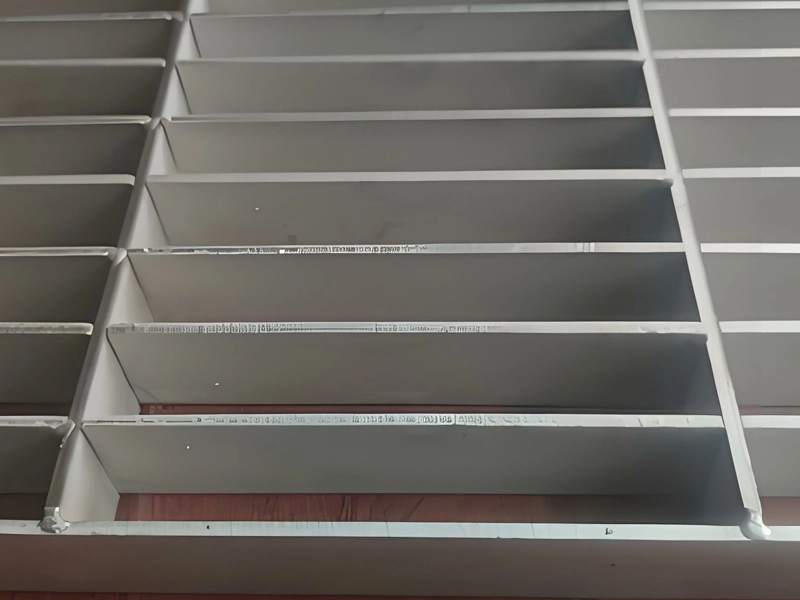

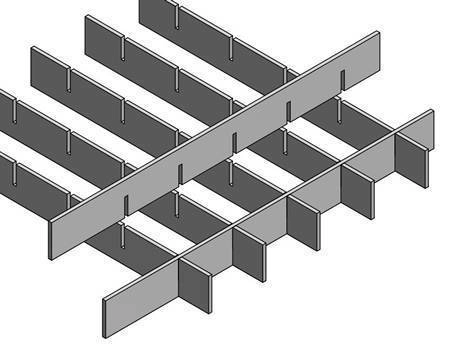

A Smooth Surface Press-Locked Steel Grating
A Smooth Surface Press-Locked Steel Grating

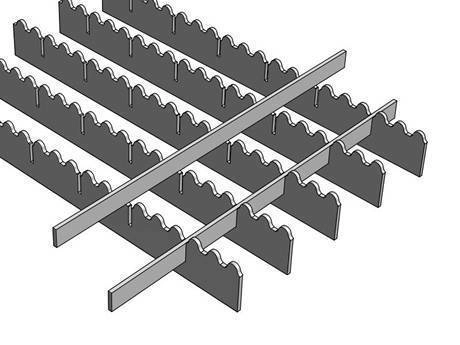

PR-S1 Surface
PR-S1 Surface

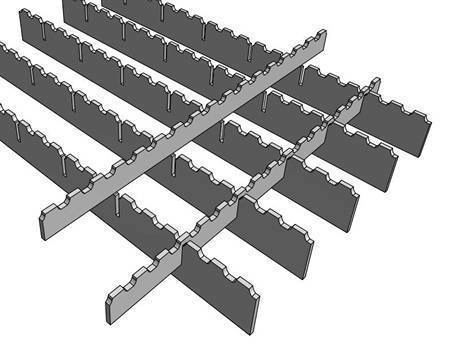

PR-S2 Surface
PR-S2 Surface

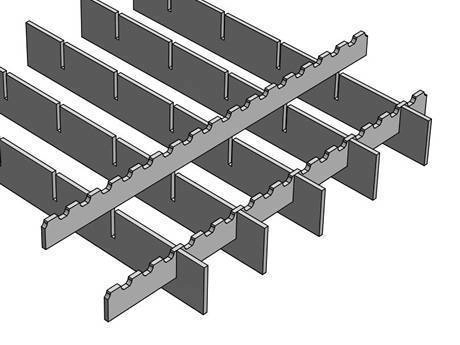

PR-S3 Surface
PR-S3 Surface

Types of Press-Locked Steel Grating

Types of press-locked steel grating by insertion angles and insertion modes.


According to the different insertion angles and insertion modes, it can be divided into four types: common type, integral type, heavy duty steel grating and louver steel grating.

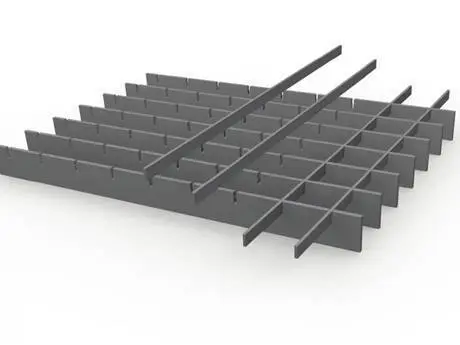

Common Steel Grating
Common Steel Grating

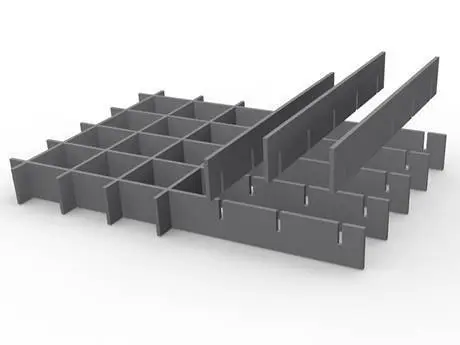

Integral Steel Grating
Integral Steel Grating

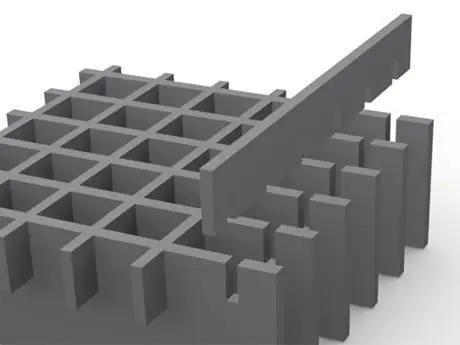

Heavy Duty Steel Grating
Heavy Duty Steel Grating

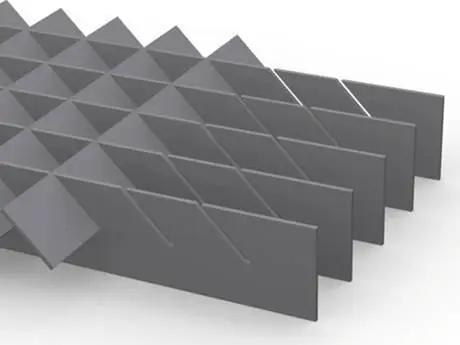

Louver Steel Grating
Louver Steel Grating

Common Type of Press-Locked Steel Grating

  • After the grooving of bearing bar, the cross bar press locked and molded.

  • Maximum machining height of common steel grating is 100 mm, the length of steel grating is less than 2000 mm.

  • The standard height of bearing bar: 20 mm to 170 mm.

  • The standard thickness of bearing bar: 2 mm, 3 mm, 4 mm, 5 mm.



Table 1: Common Mesh Spacing for Bearing Bars from 2 to 3 mm of Common Press-Locked Steel Grating
Bearing BarCross Bar
mmmm
11.111.116.65
22.233.344.449.9566.699.9
1511.116.65
22.233.344.449.9566.699.9
2111.116.652122.233.344.449.9566.699.9
22.211.116.652122.233.344.449.9566.699.9
33.311.116.652122.233.344.449.9566.699.9
44.411.116.652122.233.344.449.9566.699.9
55.511.116.652122.233.344.449.9566.699.9
66.611.116.652122.233.344.449.9566.699.9
99.911.116.652122.233.344.449.9566.699.9



Table 2: Common Mesh Spacing for Bearing Bars from 4 to 5 mm of Common Press-Locked Steel Grating
Bearing BarCross Bar
mmmm
2116.6522.233.344.449.9566.699.9
2516.6522.233.344.449.9566.699.9
33.316.6522.233.344.449.9566.699.9
5016.6522.233.344.449.9566.699.9
66.616.6522.233.344.449.9566.699.9
99.916.6522.233.344.449.9566.699.9


Integral Type of Press-Locked Steel Grating

  • The bearing bar of integral steel grating has the same height as cross bar. The grooving depth is 1/2 of bearing bar.

  • The height of the steel grating is less than 100 mm. and the length usually less than 2000 mm.

  • The standard height of bearing bar: 20 mm to 100 mm.

  • The standard thickness of bearing bar: 2 mm, 3 mm, 5 mm.


Table 3: Common Mesh Spacing for Bearing Bars from 2 to 3 mm of Integral Press-Locked Steel Grating
Bearing BarCross Bar
mmmm
22.216.6522.2
44.466.6
33.316.6522.233.3
66.6
44.416.6522.2
44.4
66.616.6522.233.3
66.6


Table 4: Common Mesh Spacing for Bearing Bars from 5 mm of Integral Press-Locked Steel Grating
Bearing BarCross Bar
mmmm
33.316.6533.366.699.9
66.616.6533.366.6
99.916.6533.3
99.9


Heavy Duty Steel Grating of Press-Locked Steel Grating

Heavy duty steel grating is bit by bearing bar and cross bar in the 1200 tons of pressure under the molding. It is suitable for high load bearing occasions.

The standard height of bearing bar: 80 mm to 200 mm.

The standard thickness of bearing bar: 8 mm, 10 mm, 12 mm.


Table 5: Common Mesh Spacing of Heavy Duty Steel Grating
Bearing BarCross Bar
mmmm
255075100
505075100
755075100
1005075100


Louver Steel Grating of Press-Locked Steel Grating

  • The bearing bar of louver steel grating open the chute with 30° or 45°. The cross bar grooved and press locked.

  • The grating height is less than 100 mm.

  • The standard height of bearing bar: 30 mm to 100 mm.

  • The standard thickness of bearing bar: 2 mm, 3 mm.


Table 6: Common Mesh Spacing of Louver Steel Grating
Bearing BarCross Bar
mmmm
33.316.6522.233.366.6
66.616.6522.233.366.6
99.916.6522.233.366.6

Note: According to the different requirements. we can produce the steel grating with other specifications and spacing.

Packaging of Press-Locked Steel Grating

  • Strap packing: Generally used for neat press locked steel grating.

  • Pallet packing: Generally for the press-locked steel grating which need to export and load in container.

  • Screw rod fixation: Use four screw rods through the mesh and fixed with screws.

Features of Press-Locked Steel Grating

  • Light weight. high bearing capability and high strength.

  • Non-silp. anti-corrosion.

  • Not easy to deform

  • Beautiful appearance.

  • Easy to install and remove.

  • Extended the lifespan.

Applications of Press-Locked Steel Grating

Press-locked steel grating is widely used for the floor, ceiling, platform, fence, shelf, decoration of outer wall, sun visor, bridge and inner and spiral staircases in such place:


  • Large-scale shopping malls.

  • Construction industry.

  • Factories. subway stations.

  • Offshore drilling platforms.

  • Ships.

  • Terminals.

  • Other industrial and civil construction.

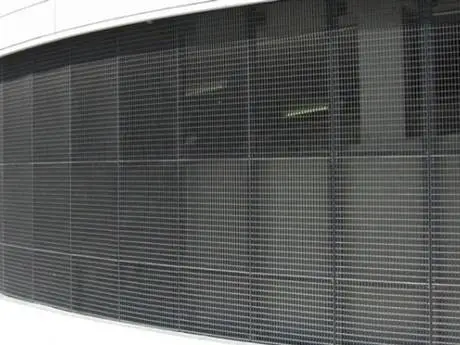

Press-Locked Steel Grating Can Be Used As The Decoration Of Outer Wall
Press-Locked Steel Grating Can Be Used As The Decoration Of Outer Wall

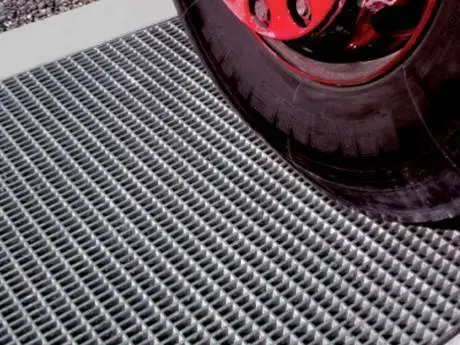

Press-Locked Steel Grating Can Be Used As Truck Floor
Press-Locked Steel Grating Can Be Used As Truck Floor

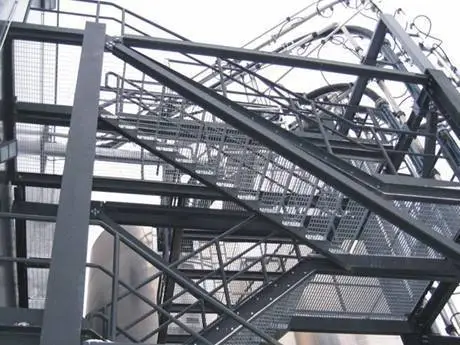

Press-Locked Steel Grating Stairs
Press-Locked Steel Grating Stairs

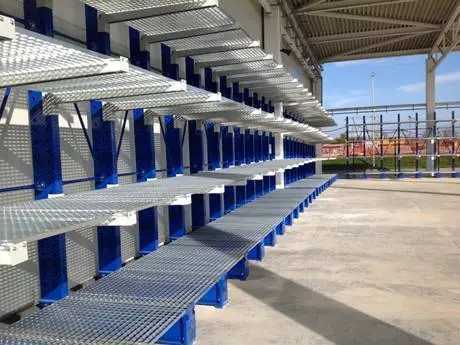

Press-Locked Steel Grating Shelf
Press-Locked Steel Grating Shelf
