Special Shaped Steel Grating

Special shaped steel gratings are made into various irregular shapes according to the actual needs of customers, mainly cutting corners, cutting holes, cutting arcs, and fan-shaped, so as to avoid secondary cutting when the goods arrive at the construction site, making the construction and installation faster and easier, and avoiding the damage of the galvanized layer caused by on-site cutting. Special-shaped steel gratings are relative to rectangular steel gratings.

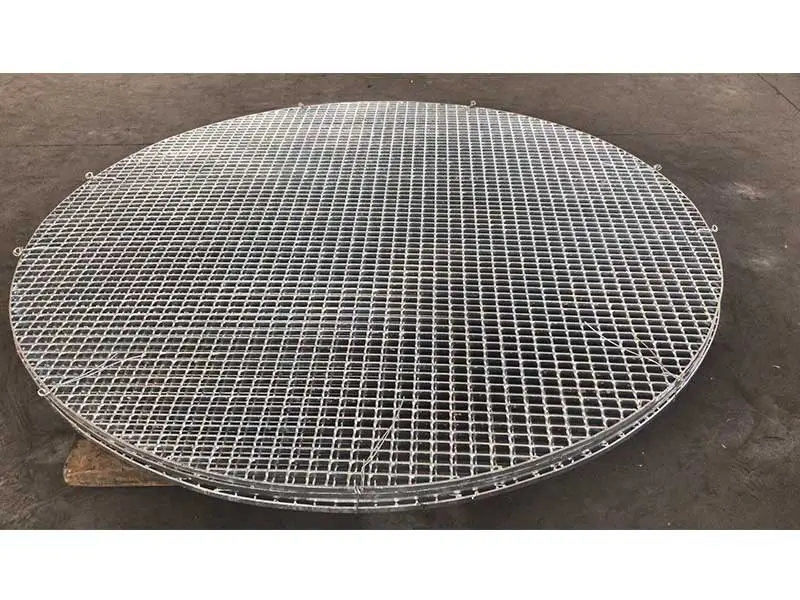

round-metal-grate

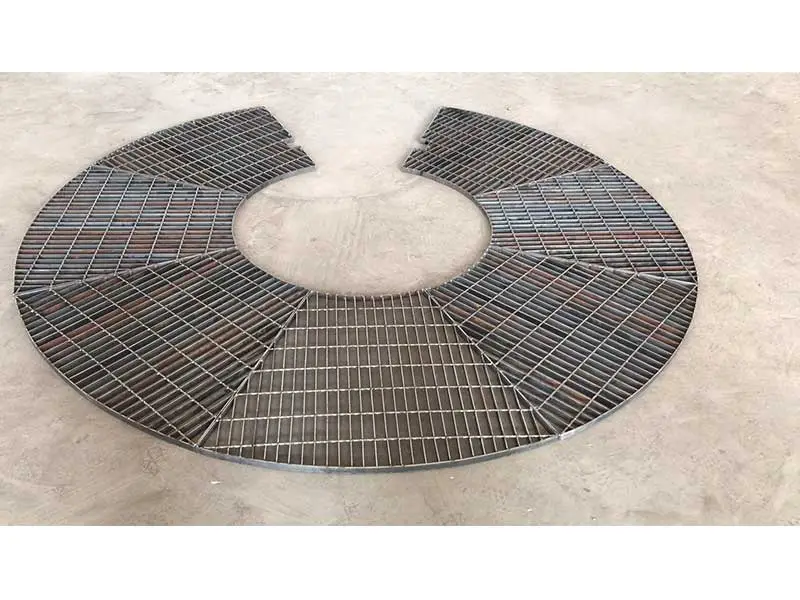

steel-open-mesh-flooring

Special Shaped Steel Gratings Common Specifications

Bear Bar(mm)Cross Bar(mm)Bearing Bar Spacing(mm)Cross Bar Spacing(mm)
20x35x56x68x83034403850100
20x55x56x68x83034403850100
25x35x56x68x83034403850100
25x55x56x68x83034403850100
30x35x56x68x83034403850100
30x55x56x68x83034403850100
32x35x56x68x83034403850100
32x55x56x68x83034403850100
40x35x56x68x83034403850100
40x55x56x68x83034403850100
50x35x56x68x83034403850100
50x55x56x68x83034403850100
* The table is of regular specifications. If other models are required, we will customize them for customers.



Special Shaped Steel Grating Shapes

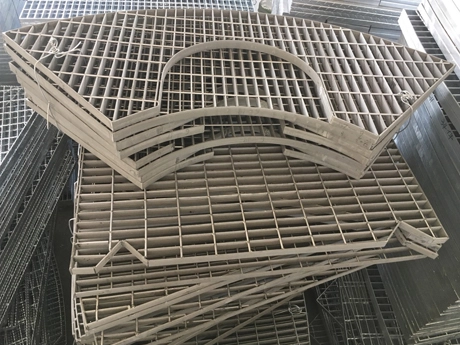

sector-steel-grating
sector-steel-grating

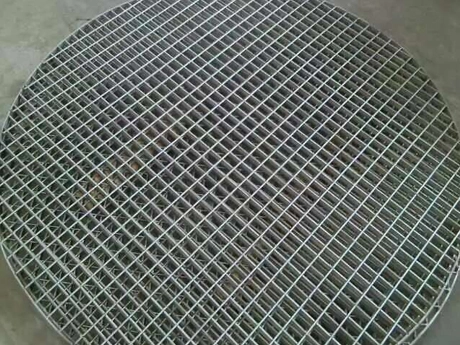

round-steel-grating
round-steel-grating

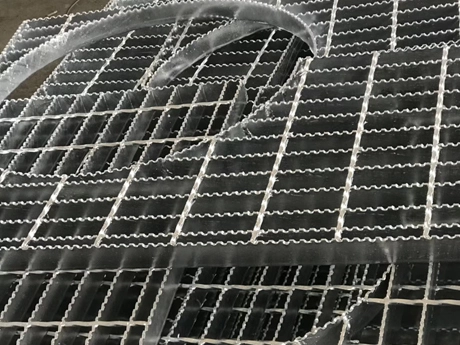

arc-cut-steel-grating
arc-cut-steel-grating

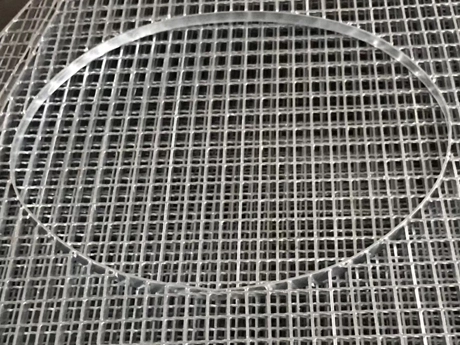

circular-cut-steel-grating
circular-cut-steel-grating

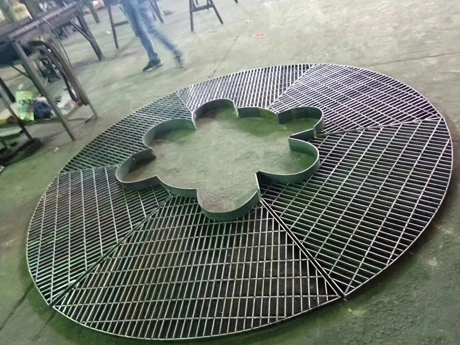

multiple-shape-steel-grating-1
multiple-shape-steel-grating-1

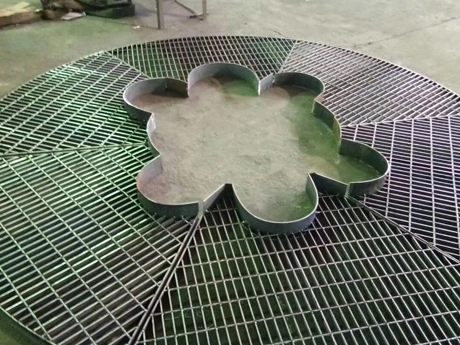

multiple-shape-steel-grating-2
multiple-shape-steel-grating-2

Characteristics of Special Shaped Steel Grating

  • Light weight: Compared with traditional steel plate materials, special-shaped steel grating is lighter and easier to carry and install.

  • High strength: Due to the special structure of the steel bar, the special-shaped steel grating has high compressive strength and bending strength and can withstand large loads.

  • Corrosion resistance: The surface of the special-shaped steel grating is hot-dip galvanized or sprayed, and has good corrosion resistance and can be used in humid and corrosive environments.

  • Good looking: The surface of the special-shaped steel grating has been treated to have a bright and flat surface, which is beautiful and can enhance the overall image of the building.
