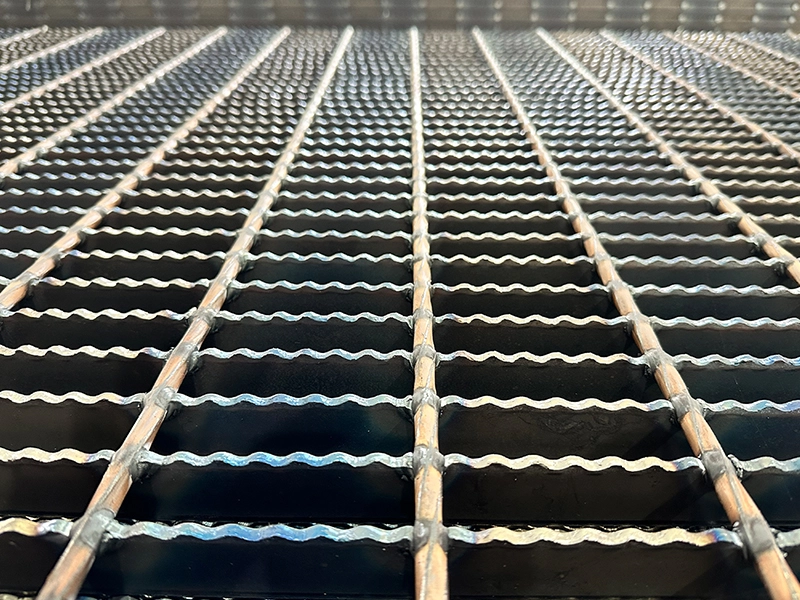

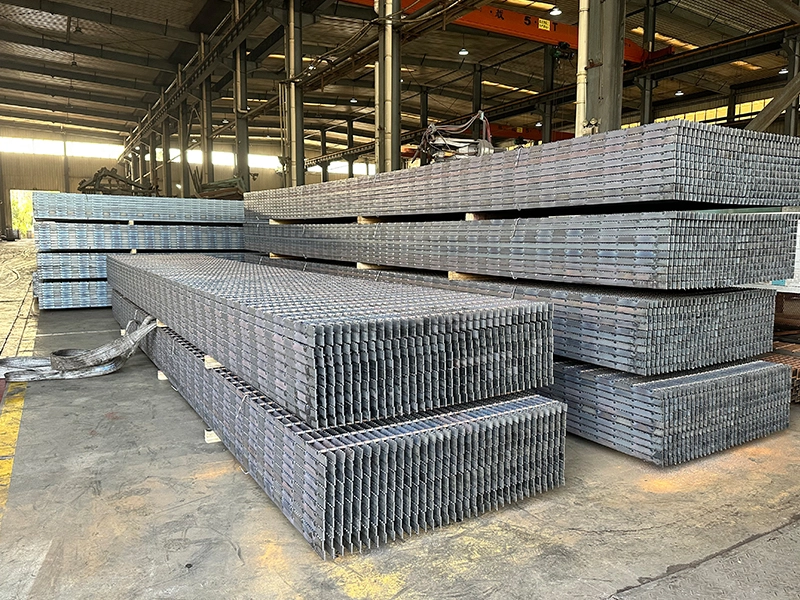

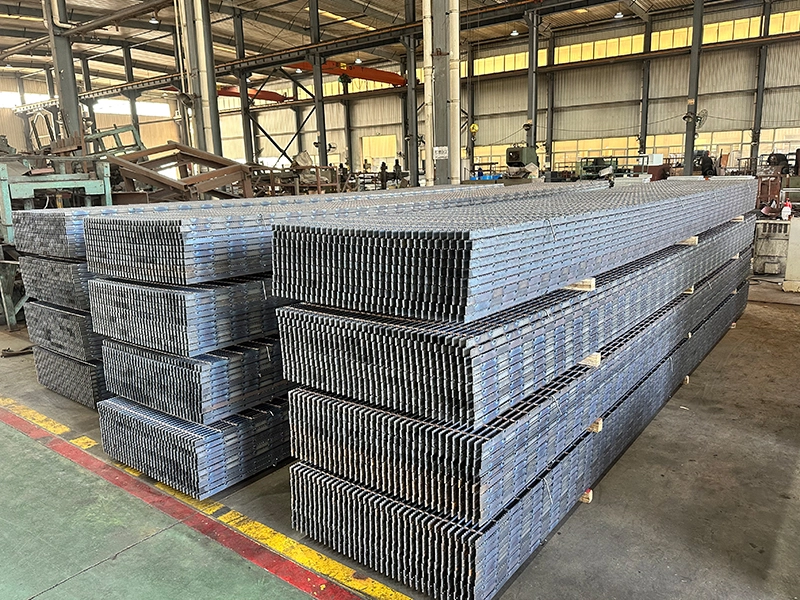

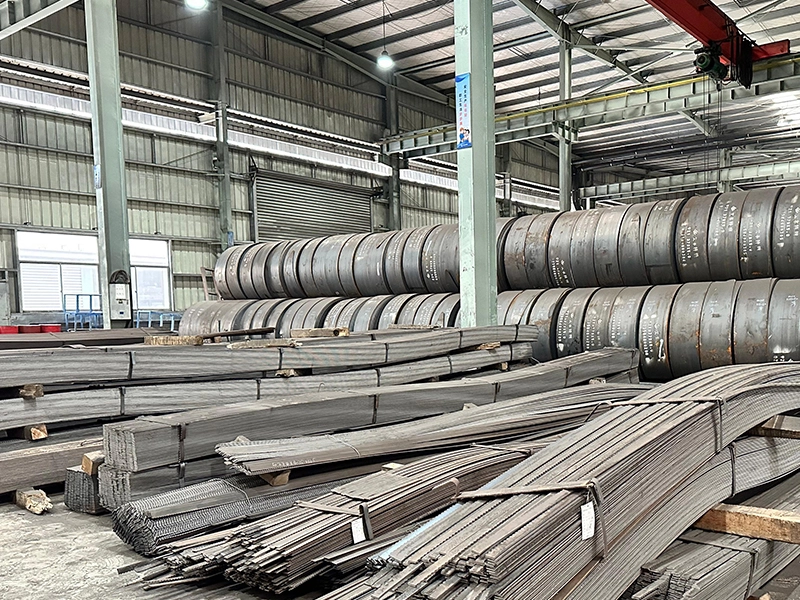

Steel grating raw panels are the flat, unprocessed versions of steel grating, often used as a base material for creating finished products such as walkways, stair treads, trench covers, and various other industrial applications.
These panels are typically made from carbon steel, stainless steel, or galvanized steel and come in various sizes, thicknesses, and load-bearing capacities.
Bearing bars: These are the main support bars that run parallel to the length of the panel. They provide the strength and load-carrying capacity.

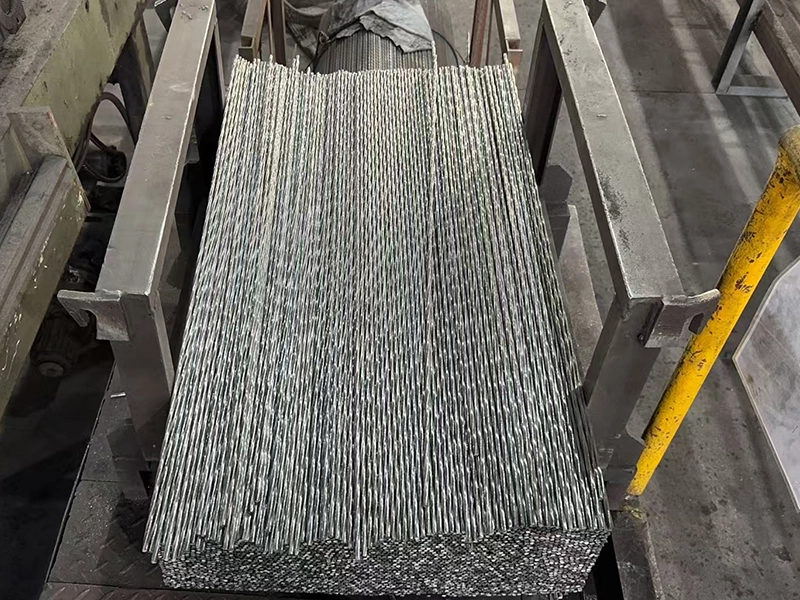

Cross bars (or cross rods): These bars run perpendicular to the bearing bars and help to hold them in place, creating the grid pattern. They also add stability to the panel.
The raw panel itself is often cut to standard sizes or custom dimensions based on the end user's requirements. Afterward, it may undergo additional processes such as galvanizing (coating with zinc) or painting for corrosion resistance, or it might be welded or machined to meet specific design needs.
| Bear Bar(mm) | Cross Bar(mm) | Bearing Bar Spacing(mm) | Cross Bar Spacing(mm) | Width(mm) | Length(mm) | |||||||
| 20x3 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 993 | 6000 | others |
| 20x5 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 995 | 6000 | others |
| 25x3 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 993 | 6000 | others |
| 25x5 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 995 | 6000 | others |
| 30x3 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 993 | 6000 | others |
| 30x5 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 995 | 6000 | others |
| 32x3 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 993 | 6000 | others |
| 32x5 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 995 | 6000 | others |
| 40x3 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 993 | 6000 | others |
| 40x5 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 995 | 6000 | others |
| 50x3 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 993 | 6000 | others |
| 50x5 | 5x5 | 6x6 | 8x8 | 30 | 34 | 40 | 38 | 50 | 100 | 995 | 6000 | others |
| * The table is of regular specifications. If other models are required, we will customize them for customers. | ||||||||||||
STEEL GRATING MATERIAL
| Standard | Manufacture Standard | Steel Material Standard | ||
| Bearing Bar | Cross Bar | Stainless Steel | ||
| China | YB/T 4001.1-2019 | GB/T 700 Q235 Q235B | GB/T 700 Q235 | ASTM A240 GR304(L) or GR316(L) |
| USA | ANSI/NAAMM(MBG531-00) | ASTM A1011 CS Type B or ASTM A36 | ASTM A510 | ASTM A240 GR304(L) or GR316(L) |
| British | BS4592 | BS EN 10025 | BS EN 10025 | BS EN 10258 |
| Germany | DIN24537-1 | DIN EN 10025 | DIN EN 10025 | DIN EN 10088 |
| Australia | AS1657 | BS EN 10025 | BS EN 10025 | BS EN 10258 |
HOT DIP GALVANIZATION
| Galvanized Standard | China | USA | ||
| GB/T 13912 | ASTM A123/A 123M | |||
| Material Thickness | 3≤t≤6 | 1.6≤t≤3.2 | 3.2≤t≤4.8 | 4.8≤t≤6.4 |
| Minimum Average Thickness (μm) | 70 | 65 | 75 | 75 |
| Conversion | mils=μmx0.03937 oz/ft²=μmx0.02316 g/m²=μmx7.067 | |||
| *The thickness of the galvanized layer can be customized according to customer needs | ||||
