Traction Plank Grating

The traction plank safety grating uses multiple perforated buttons as a means of anti-slip.


These punched holes can be arranged in various patterns, including pits, rectangles, drain holes, stars, squares, and OEM according to customer requirements.



The traction plank safety grating is very useful for blocking small items from falling. It also supports walking in high heels.

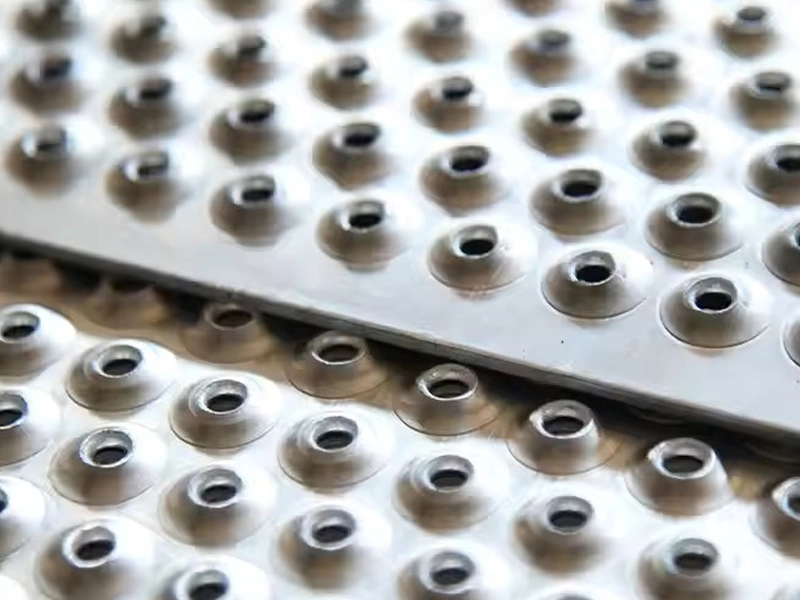

mcnichols traction tread plank

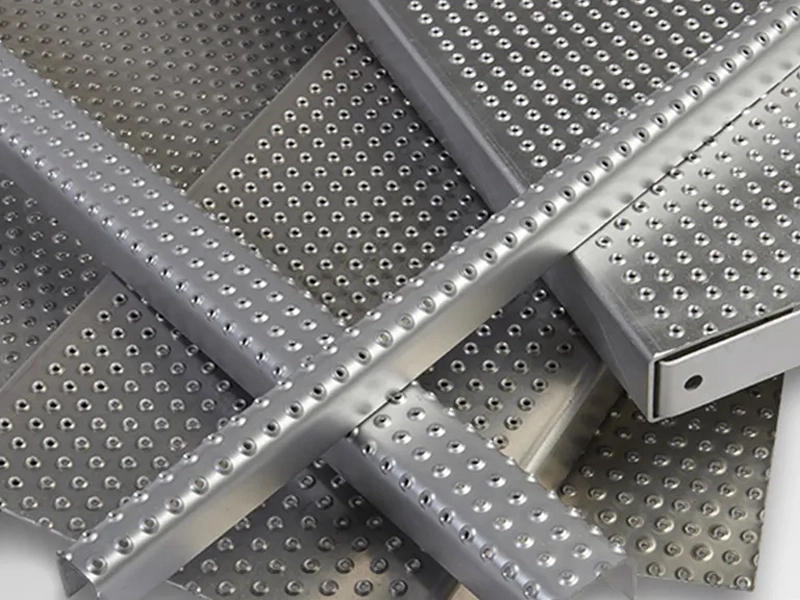

traction tread planks

Traction Plank Grating Material Availability

Material optionsCarbon steelCarbon steelCarbon steelCarbon steelCarbon steelAluminum alloy 5052-H32
Gauge/Thickness11 gauge12 gauge13 gauge14 gauge16 gauge.125"
Load capacity (lbs./sq. ft.)54.33.83.12.51.6


Traction Plank Grating Specification

TypeLadder rungs, Planks, Stair treads, Scaffolding planks
MaterialGalvanized sheet:11, 13, 16 gauge
HRPO carbon steel:11, 12, 13, 14, 16 gauge
5052-H32 aluminum:0.125"
Stainless steel 304 or 316L:14, 16 gauge
Traction tread ladder rungsHole type:2-hole, 3-hole, 4-hole
Width:2-hole: 1-1/4", 3-hole: 1-5/8", 4-hole: 2-1/4"
Depth:2-hole: 1-1/2", 3-hole: 1-1/8", 4-hole:1-1/2"
Length:As request.
Traction tread plank gratingHole diameter:3/8"
Width:7", 10", 12"
Length:120", 144"
Channel depth:1-1/2", 2"
Traction tread stair treadsWidth:7", 10", 12"
Channel depth:1-1/2", 2"
Length:As request
Accessories:carriage bolts, flat washer, Hex nut, carrier plate.
Standard:BS 4592-0, BS 4592-1, BS 4592-3
Surface treatmen:galvanized, hot rolling, pickling.
Packagepacked with plastic film, shipped by pallets or according to customers' requirements.

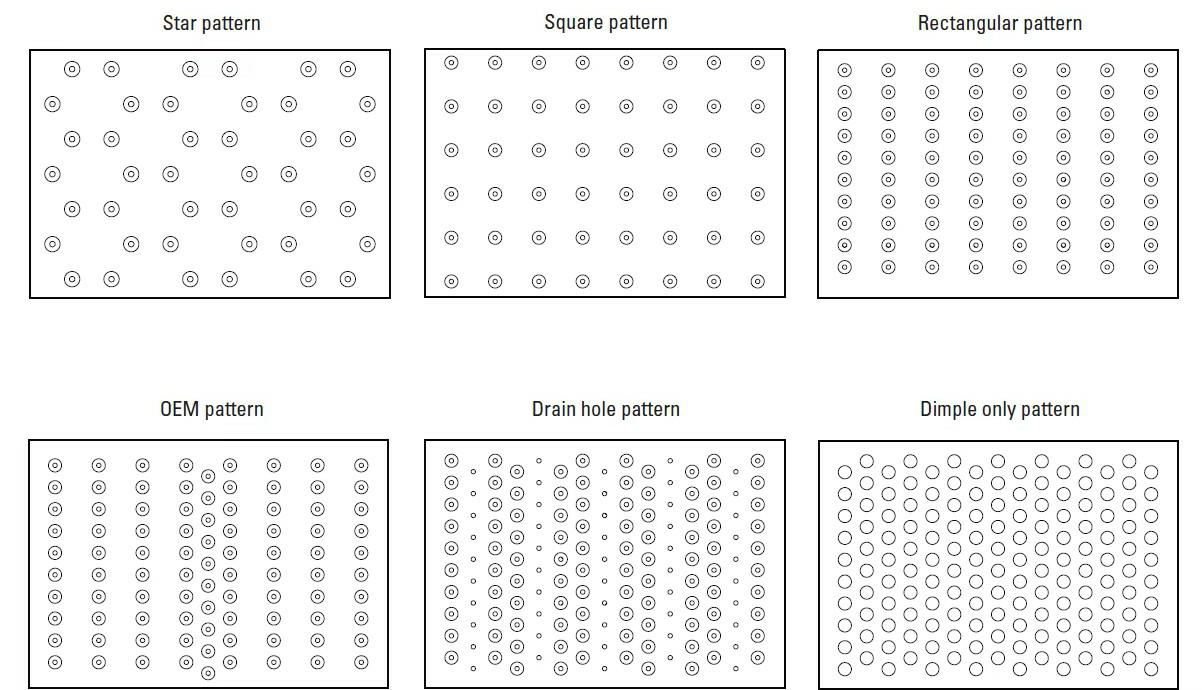

Traction Plank Grating Pattern


Traction Plank Grating Feature

  • Excellent anti-slip performance

    The hole design of the crocodile mouth shape makes the surface form a raised serration, which can increase the friction between the sole of the foot and the walkway board. Even in slippery environments such as mud, ice, snow, grease, etc., it can effectively prevent people from slipping and ensure walking safety.


  • Easy to maintain

    The open hole structure can quickly filter liquids, mud, snow and ice in the channel to avoid water accumulation and dirt accumulation, reduce the workload of cleaning and maintenance, and keep the walkway clean and hygienic.


  • High bearing capacity

    The high strength-to-weight ratio gives it a high bearing capacity, can withstand a large weight, and has a longer life than many similar products, which can meet the use needs of different places.


  • Light weight

    Compared with some traditional walkway panels, the crocodile mouth perforated board walkway is lighter, which is easy to carry, install and construct, reducing labor intensity and construction costs.


  • Beautiful appearance

    Its unique hole shape and neat arrangement make the walkway decorative, which can be coordinated with the surrounding environment and enhance the overall aesthetics.


  • Anti-rust and anti-corrosion

    Choosing suitable materials such as stainless steel plates, aluminum plates or iron plates treated with anti-corrosion can effectively resist rust and corrosion and can be used for a long time in harsh climatic conditions and industrial environments.


Application Fields of Traction Plank Grating

  • Industrial field

    widely used in work platforms, equipment platforms, stair treads, trench covers, etc. in the petroleum, chemical, mining, electricity, marine exploration, electroplating, shipping, water and wastewater treatment, papermaking, brewing and other industries, providing safe and reliable walking passages for staff.


  • Transportation facilities

    can be used for railway platforms, subway walkways, bridge walkways, etc., in humid or oily environments to ensure the walking safety of passengers and staff.


  • Architectural decoration

    suitable for indoor and outdoor stair treads, walkways, etc. of buildings, which can not only meet the anti-slip function, but also play a certain decorative role and improve the overall quality of the building.


  • Other places

    can also be used in outdoor places such as sewage treatment plants, water plants, power plants, and some public places that require anti-slip and drainage, such as playgrounds and swimming pools.


Traction Plank Grating
Traction Plank Grating
Traction Plank Grating
Traction Plank Grating
